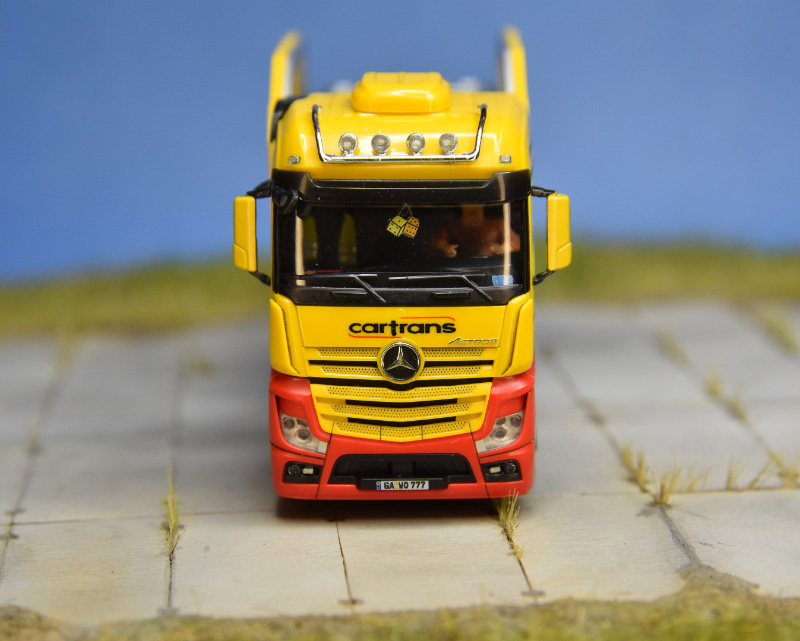

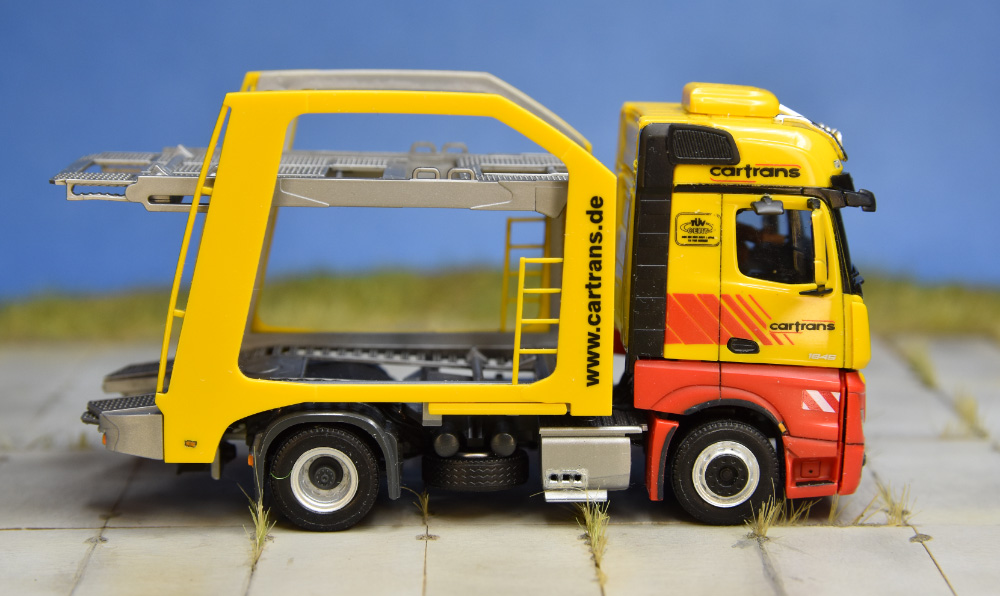

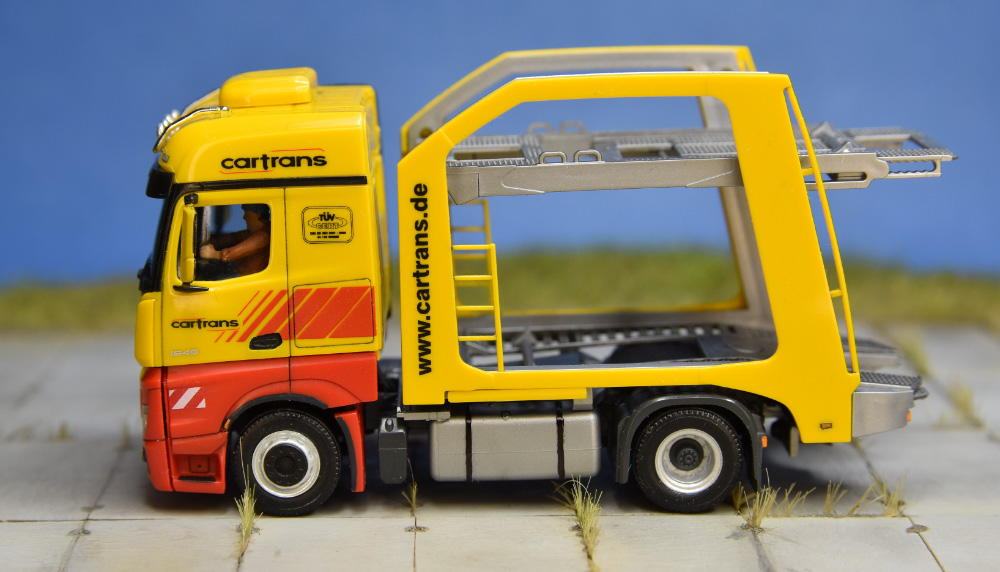

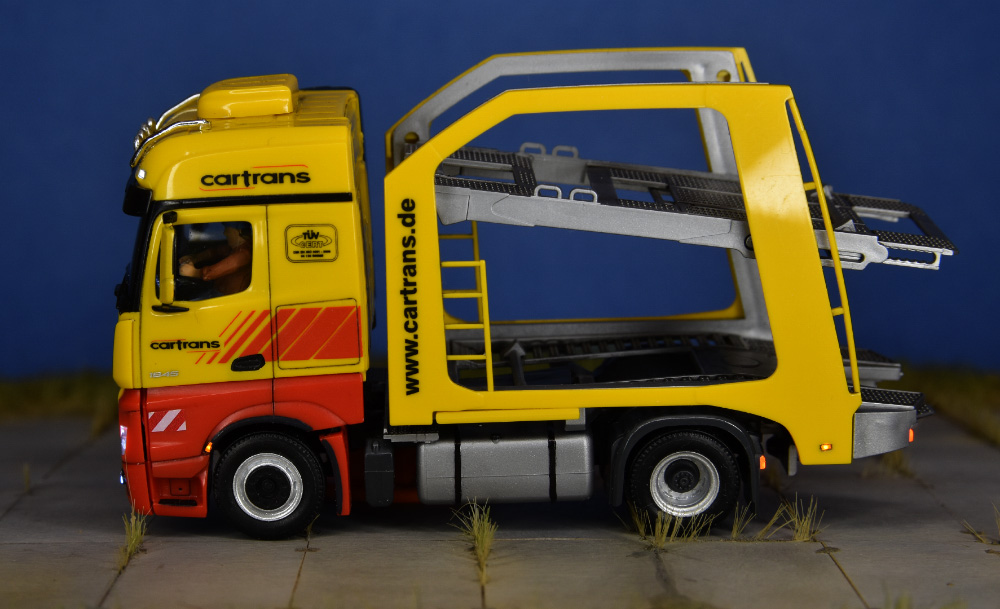

MB Actros’11 Eurolohr ‘Cartrans’

Posted on July 5, 2021March 2, 2022
  • receiver Rx43d-1

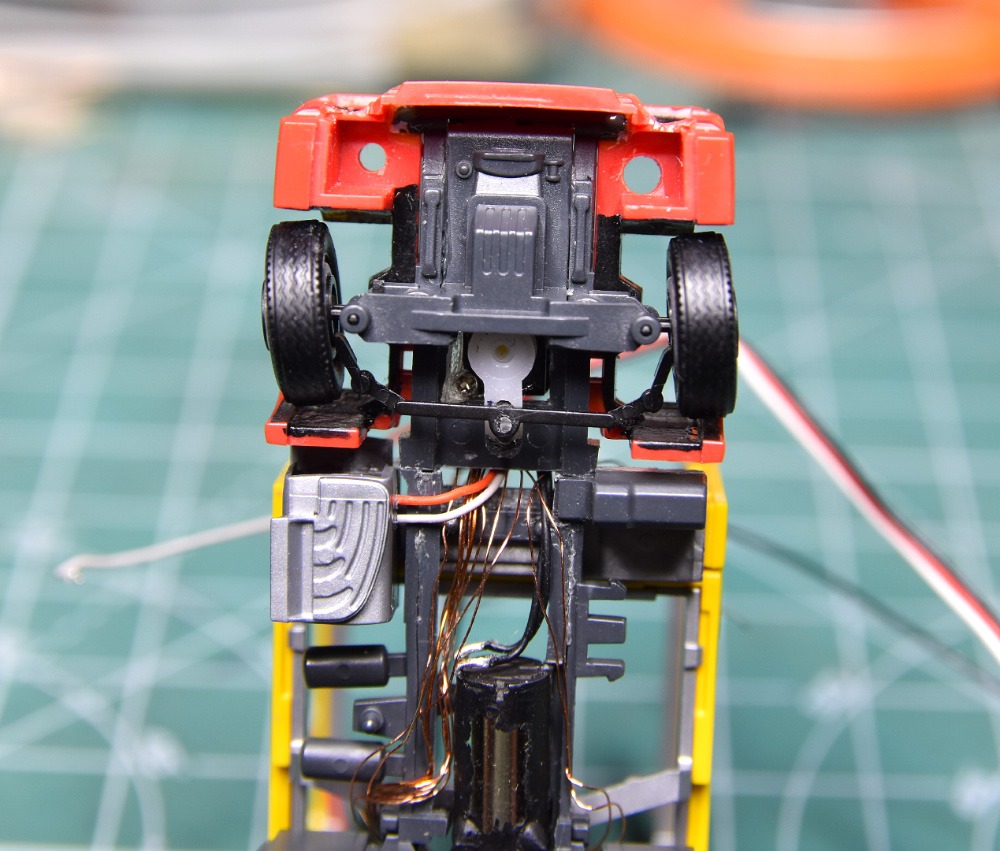

  • geared motor G324M660P (kkpmo)
  • miro servo S18JST

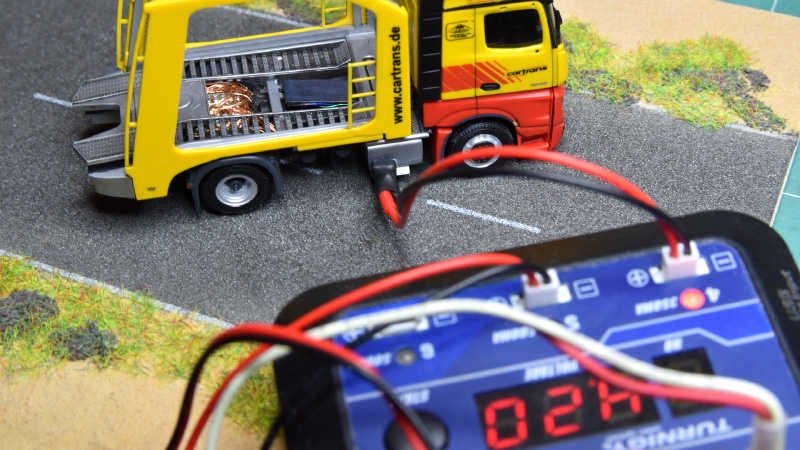

  • lipo 1s 180mAh

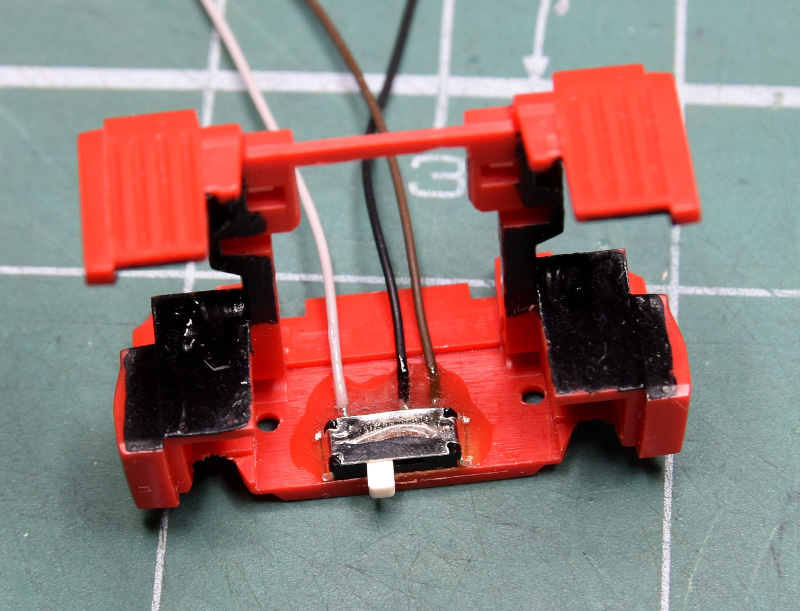

  • micro SMD switch

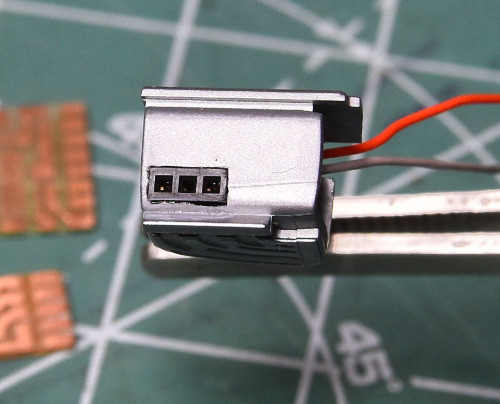

  • micro socket for charging and for trailer connection
  • 53 LEDs 0603/0402

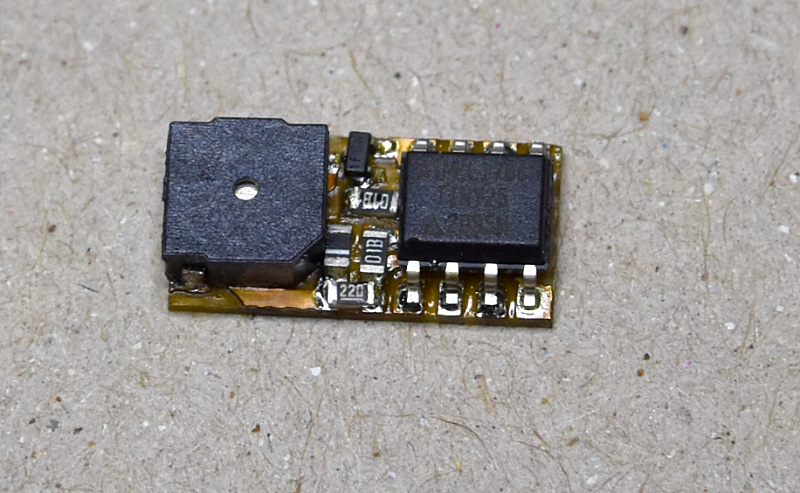

  • reversing sound module

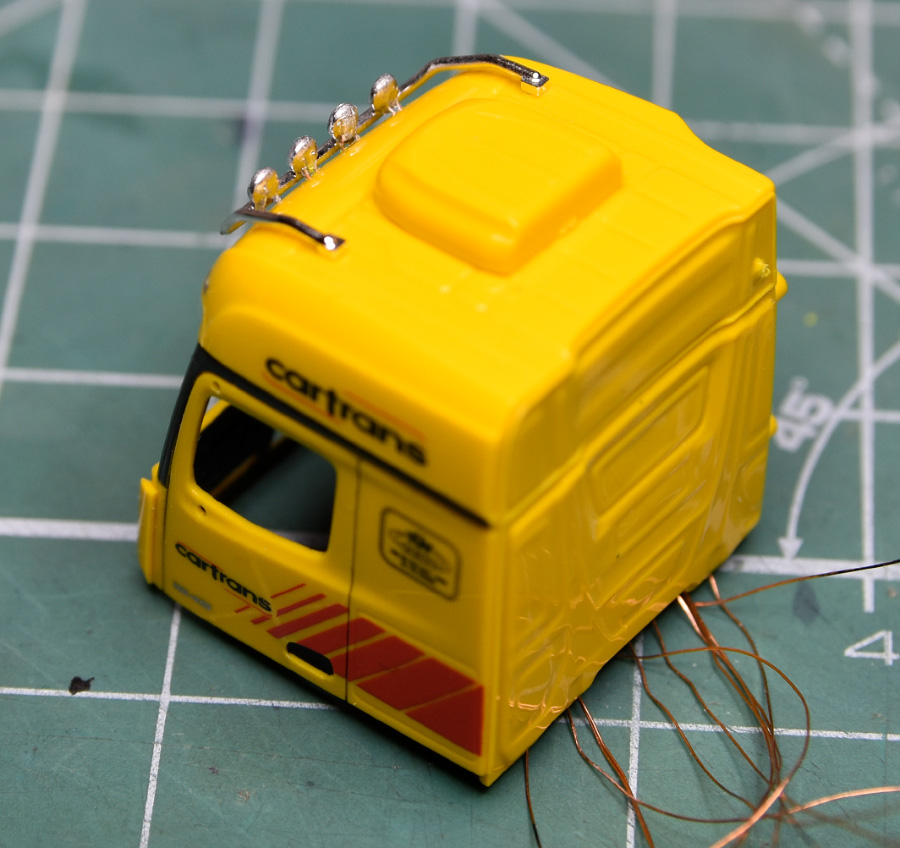

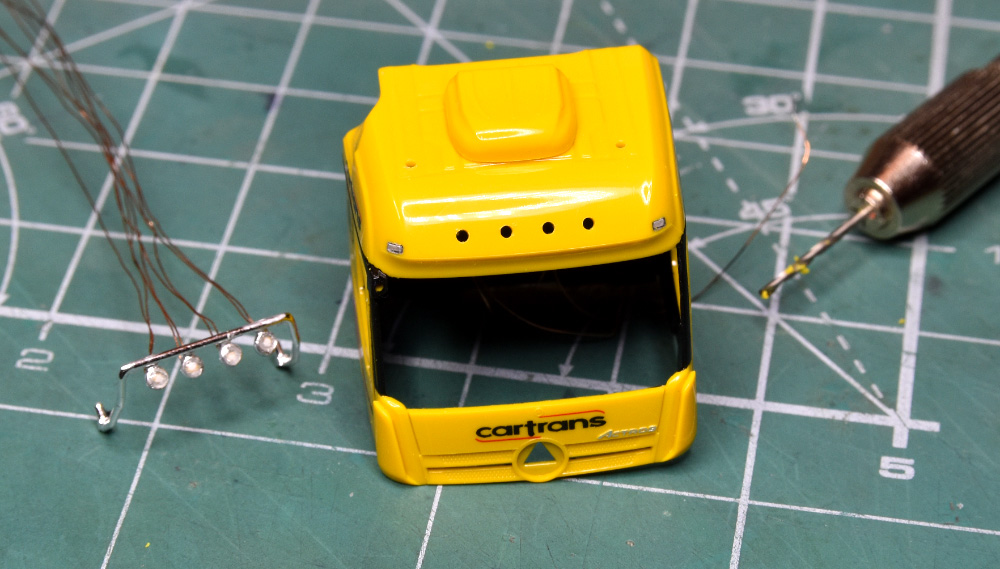

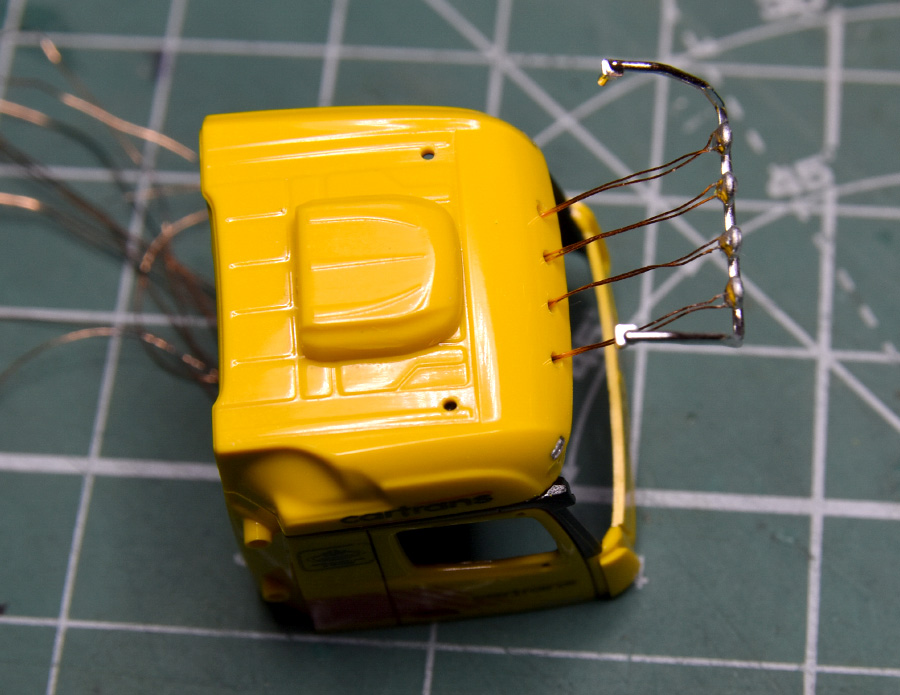

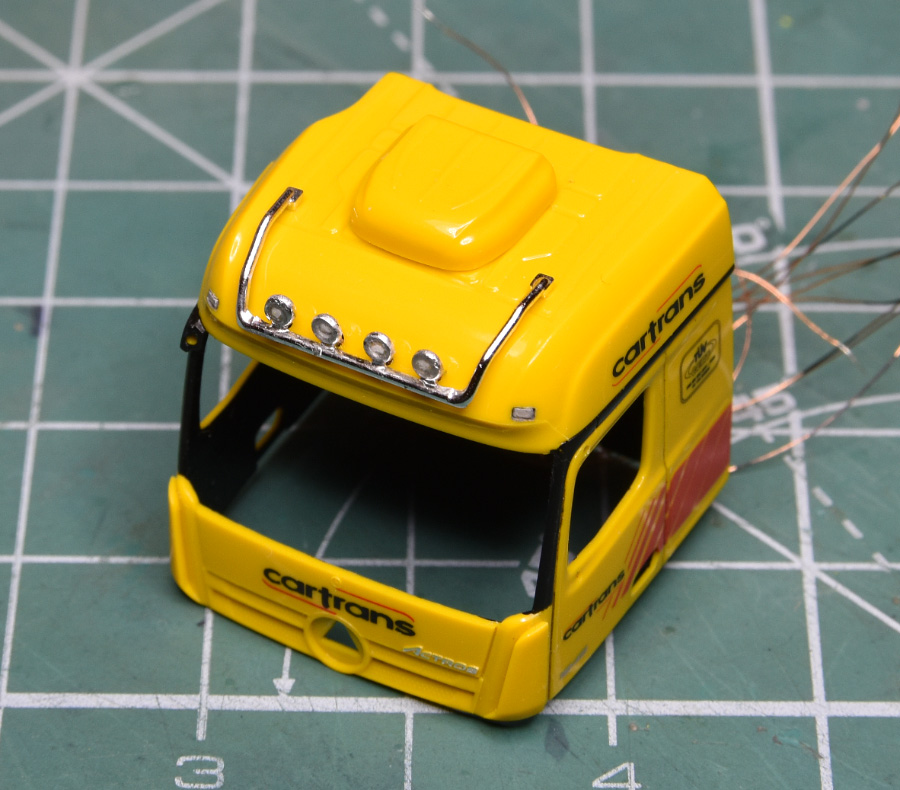

  • warning light module (for the top 4 LEDs bar)

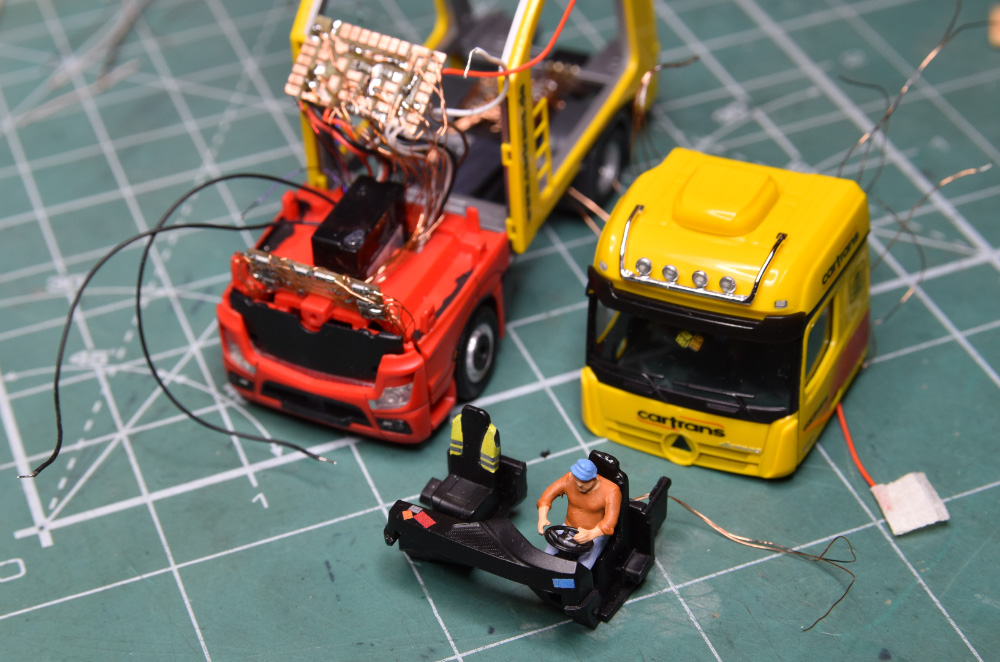

This beautiful model has been waiting a long time for me to start with it. He was postponed until I had my warning light modules ready. This version of MB Actros 1842 is quite enjoyable to build. In the cabin there is a lot of space for LiPo , receiver and some PCB and lights module. The trailer, however, was different story. It seems simple build, but number of small LEDs makes it really boring to convert.

  • Holes for bottom lights drilled and filled with a transparent material

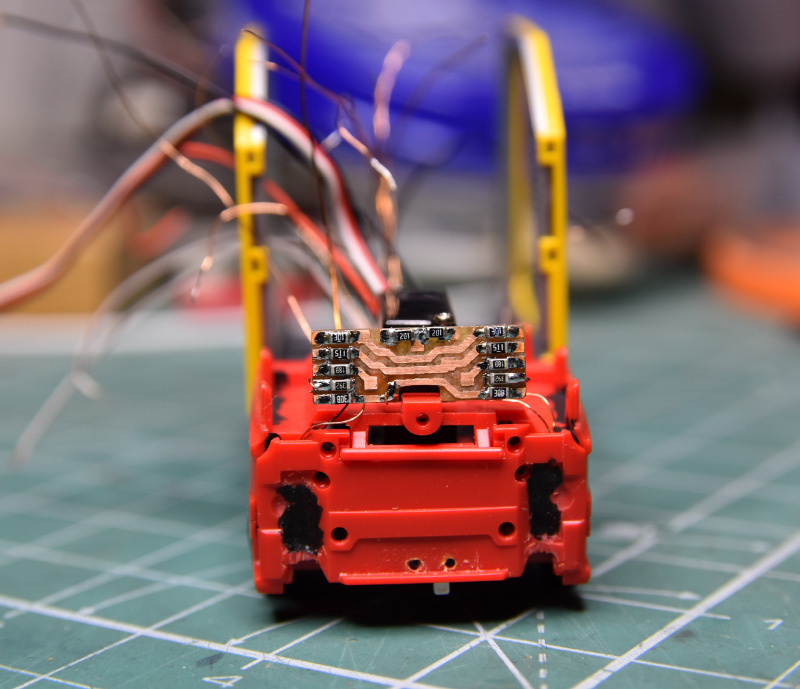

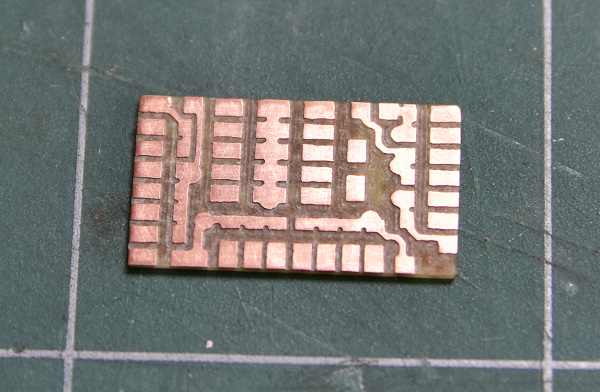

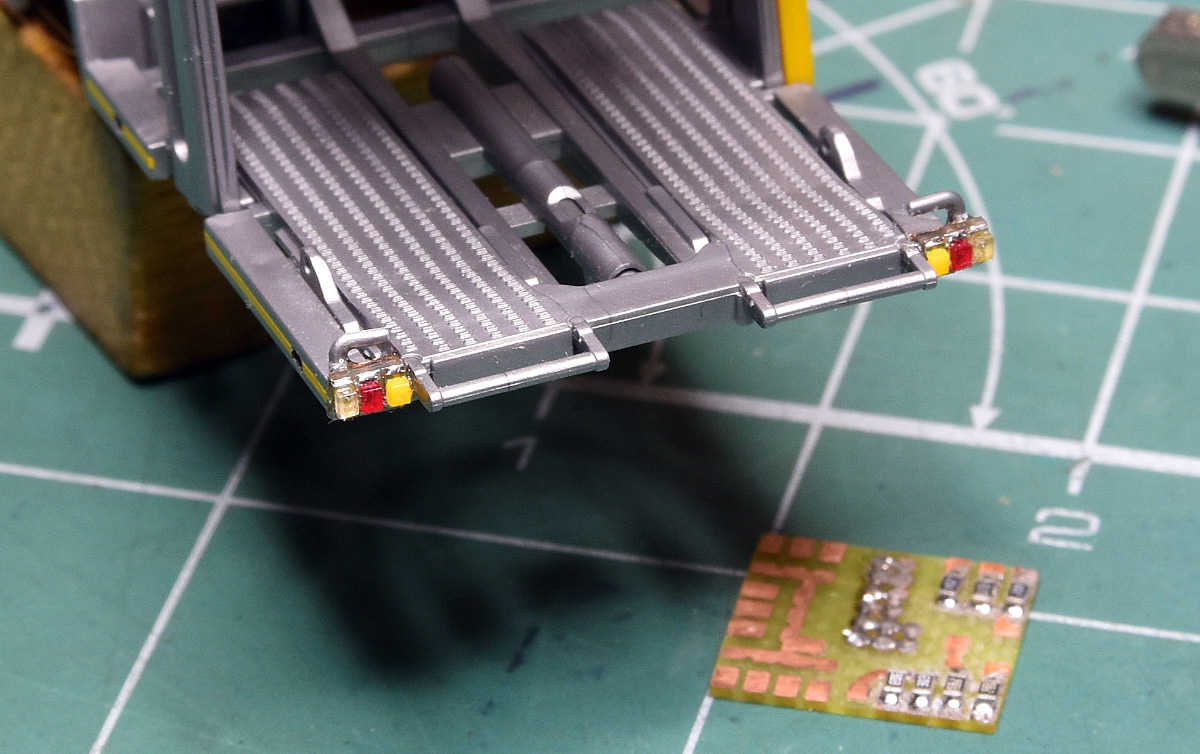

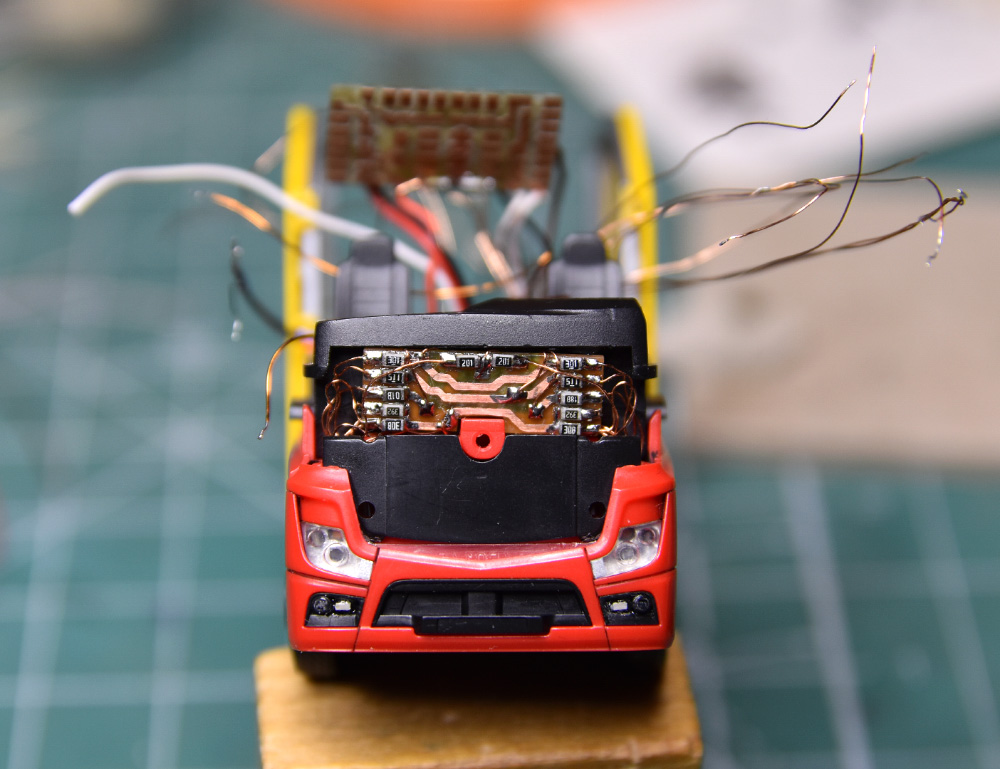

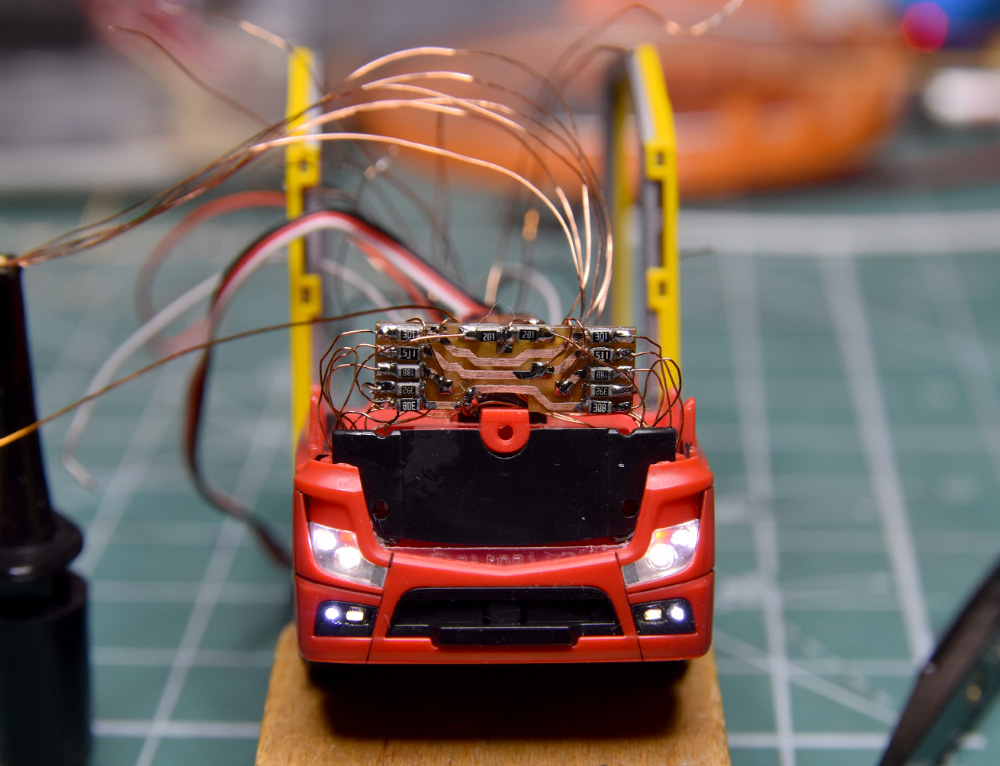

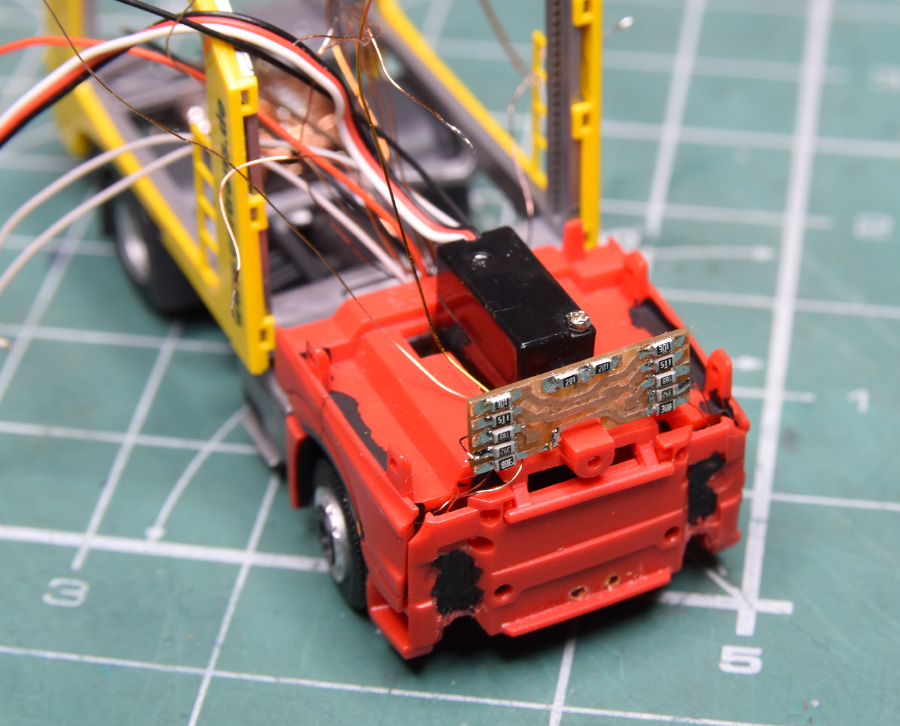

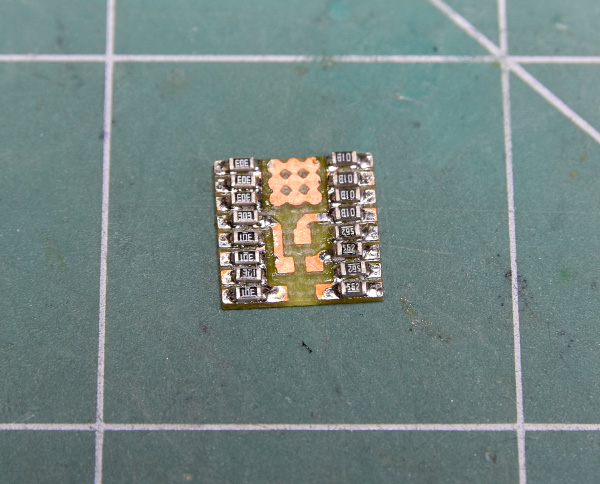

  • Additional PCB for second pair of truck’s tail lights

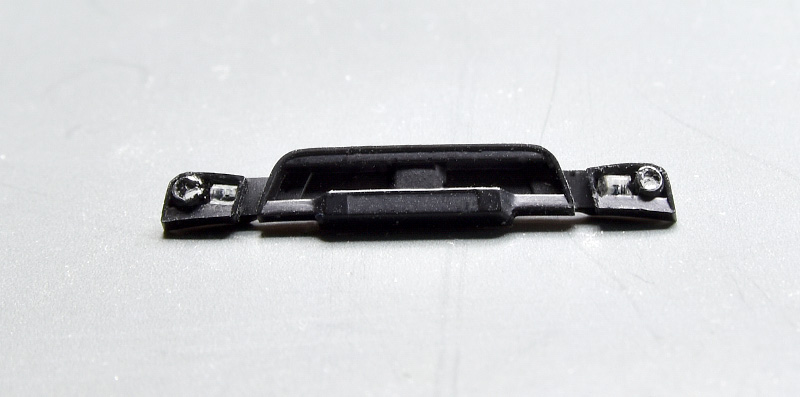

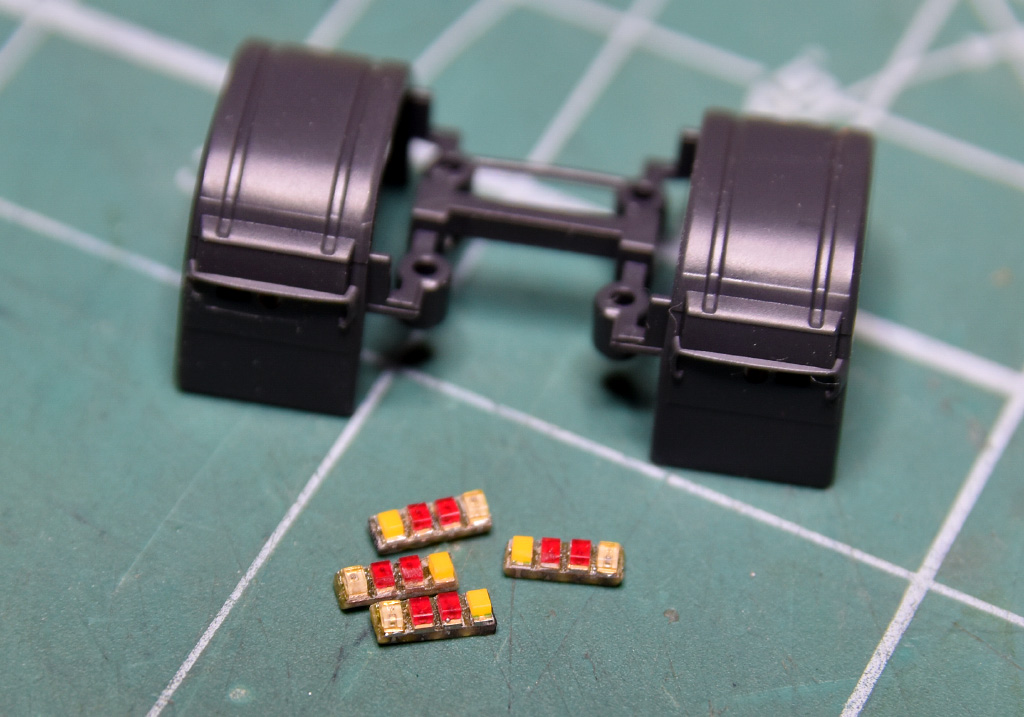

  • Tail lights for a truck

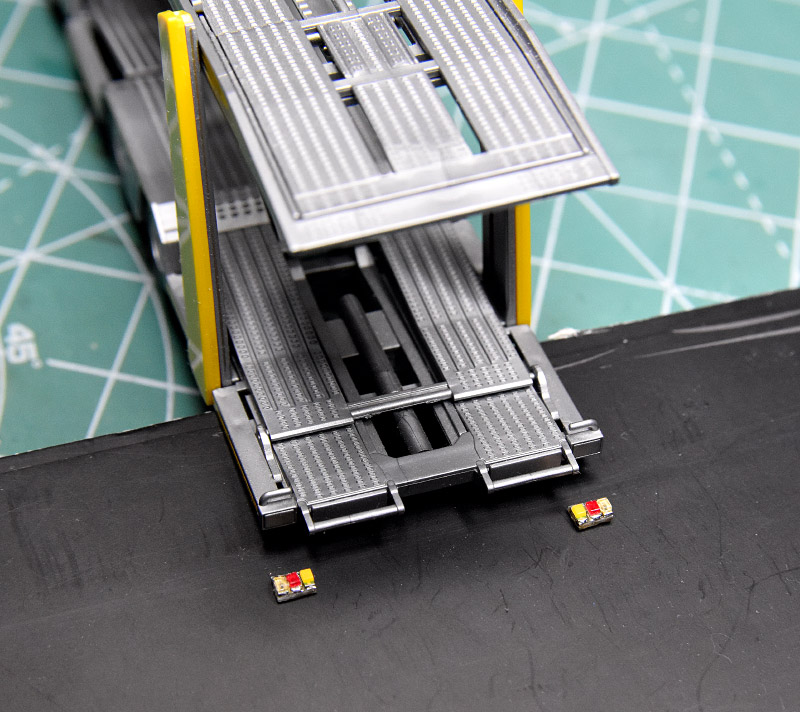

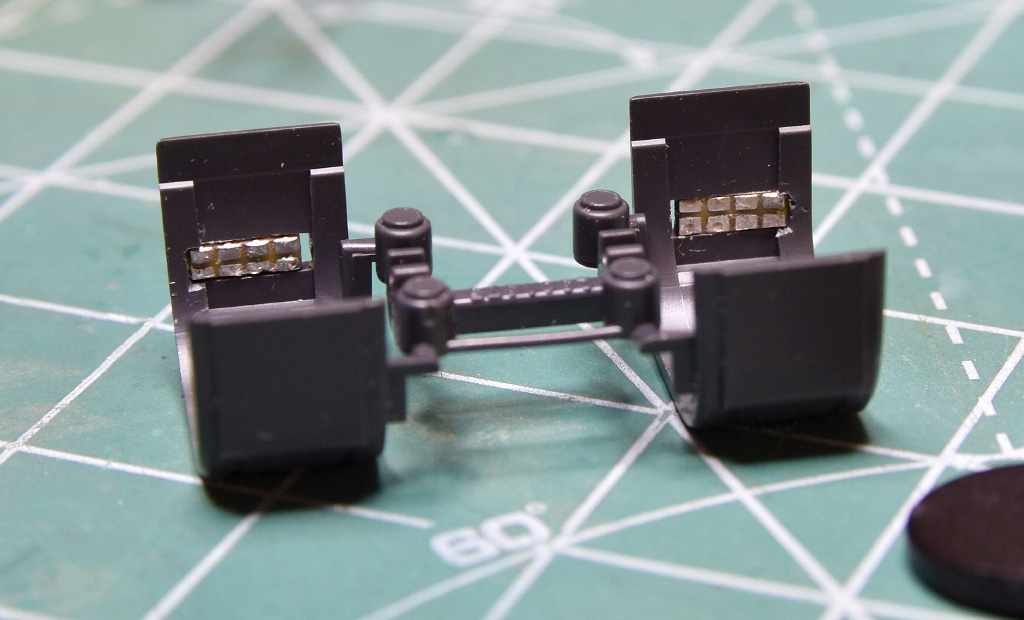

  • Tail light fitting test
  • Tail light fitting test

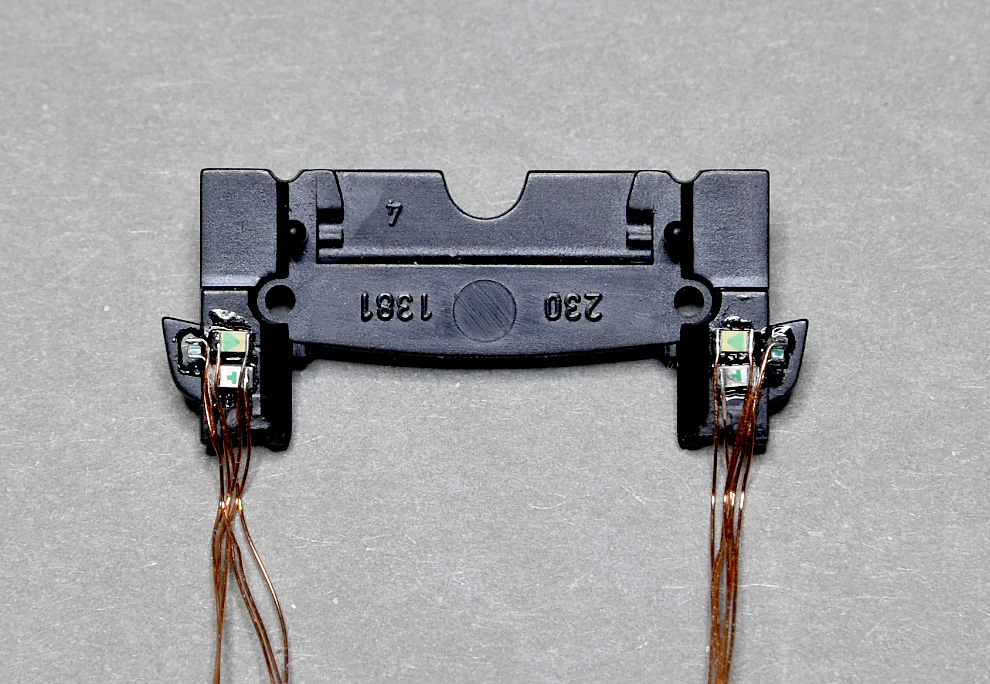

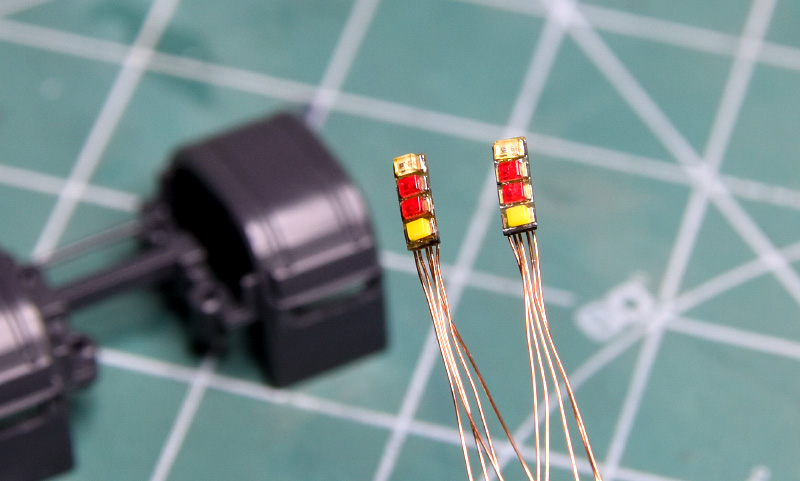

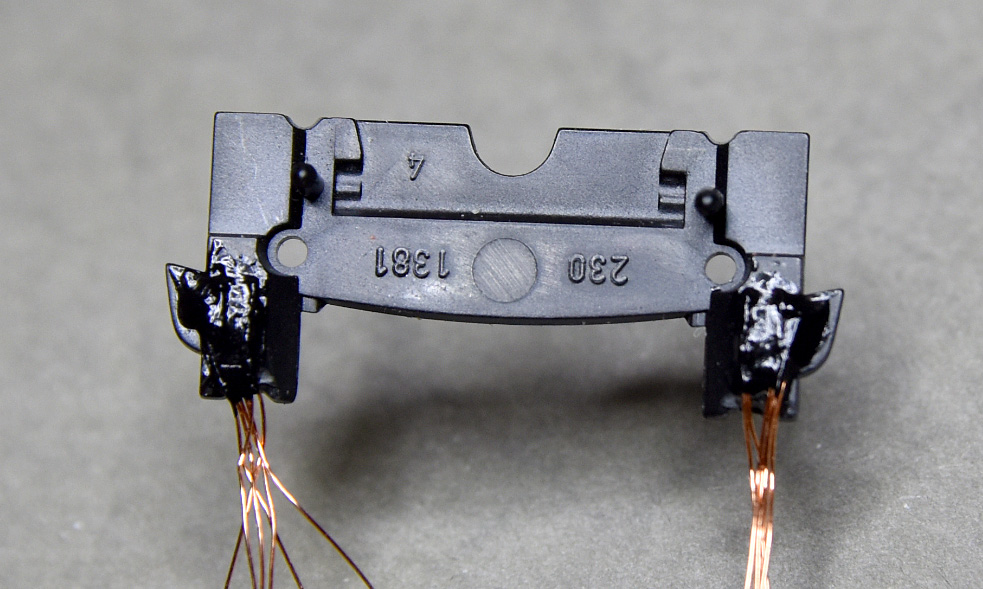

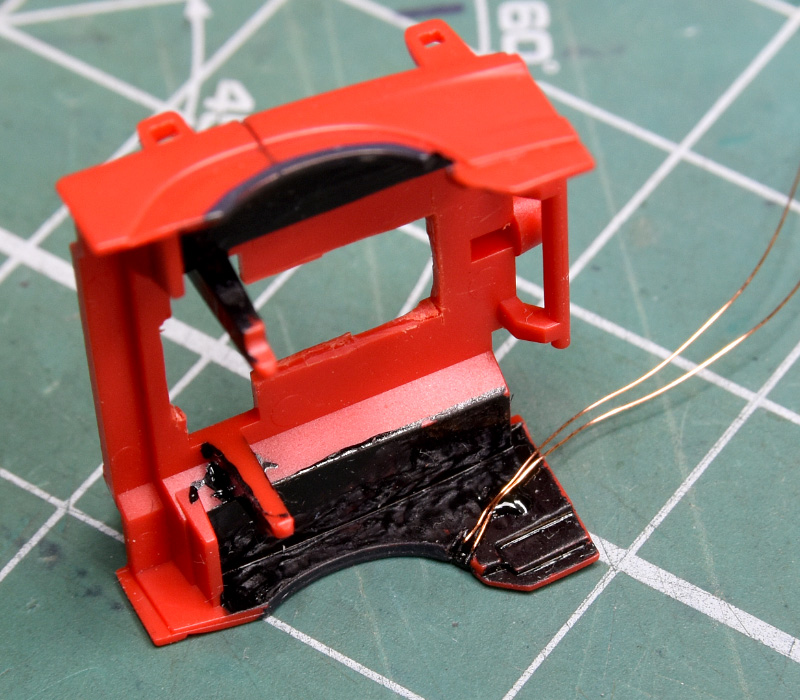

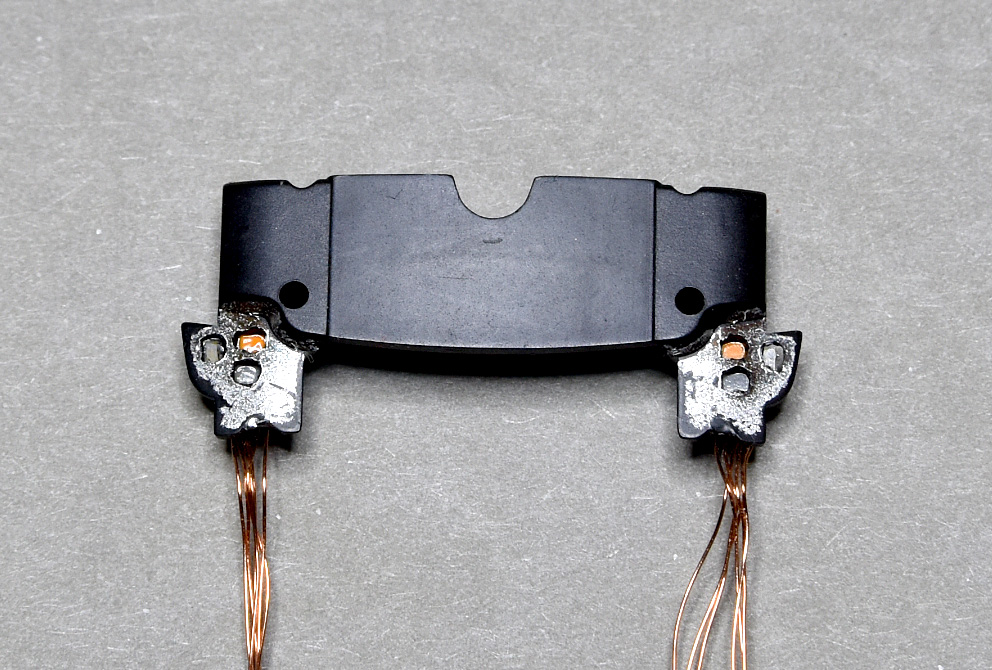

  • Lights panels with soldered wires
  • Tail lights glued

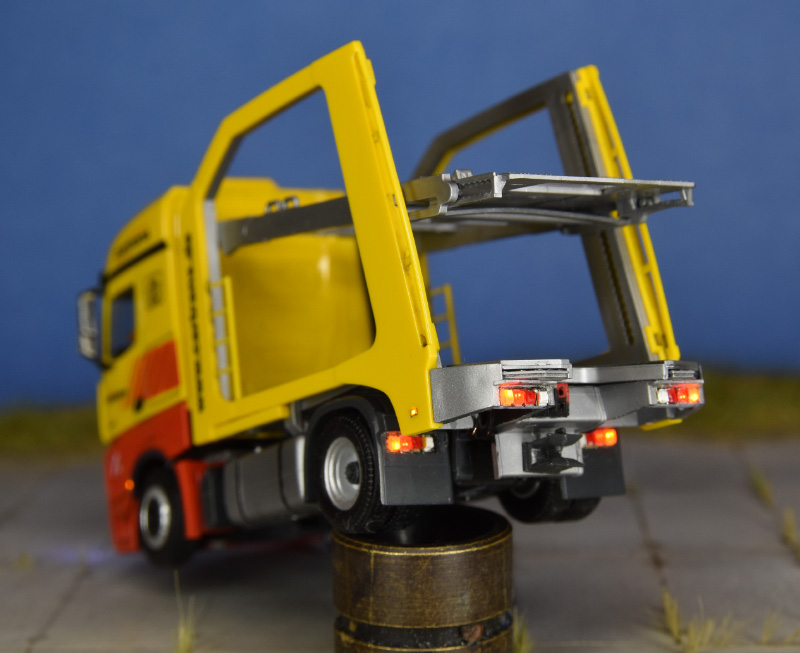

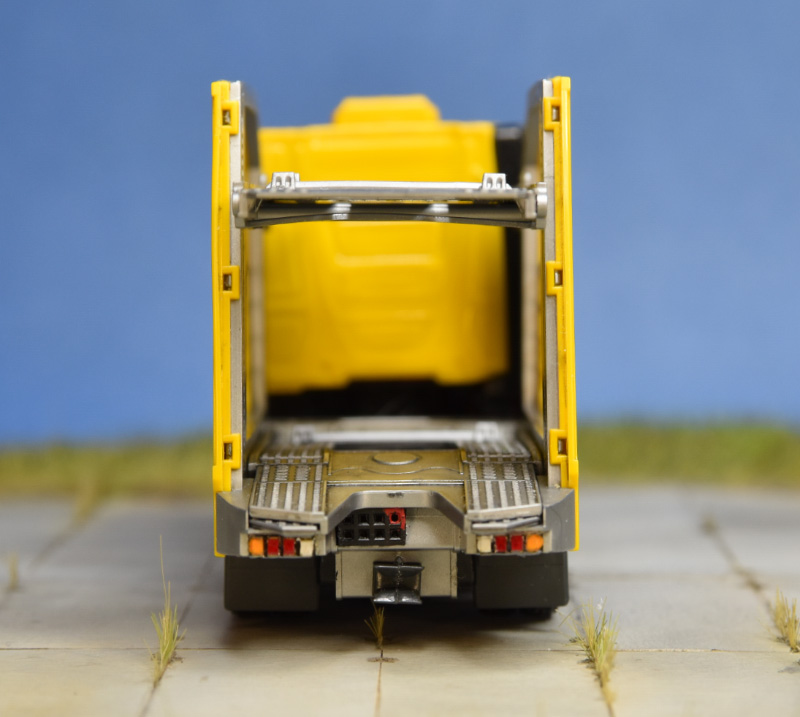

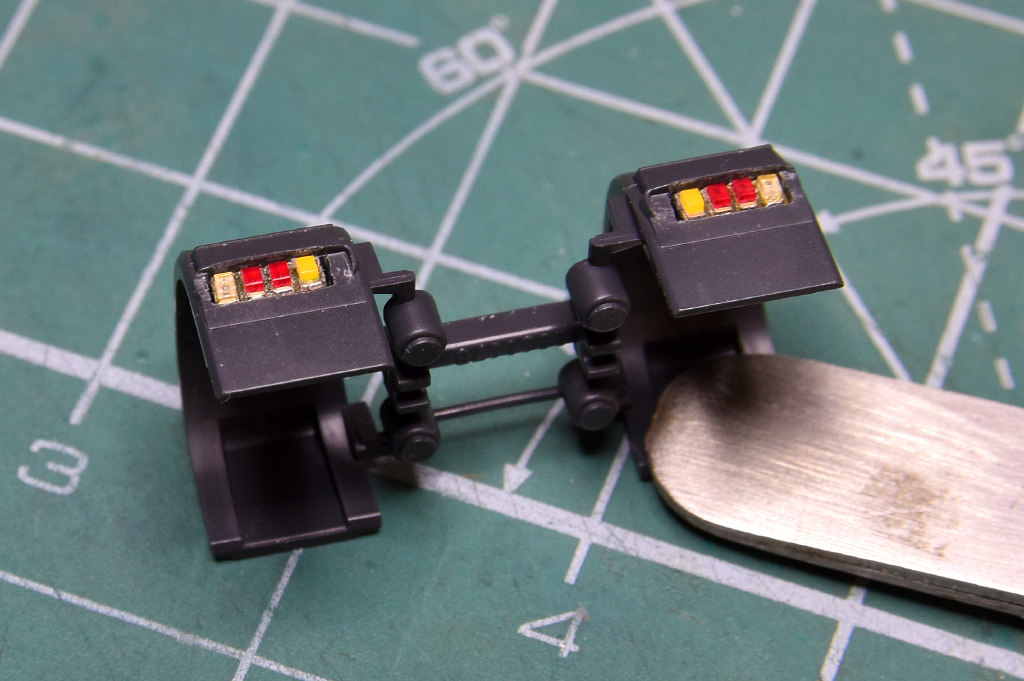

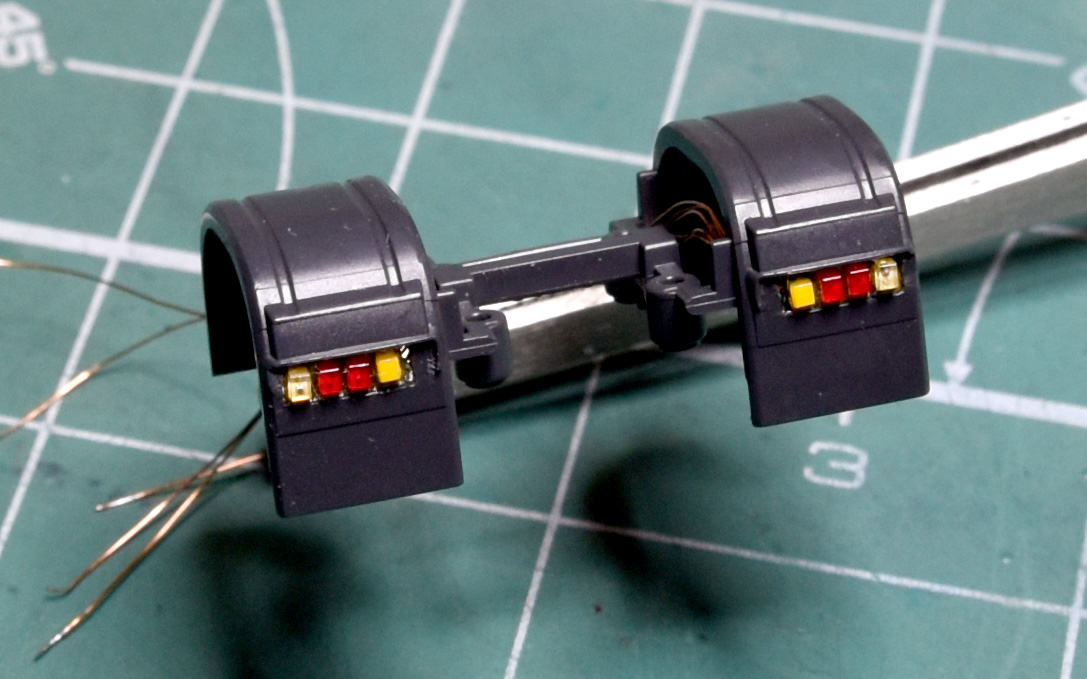

  • Truck’s tail lights ready

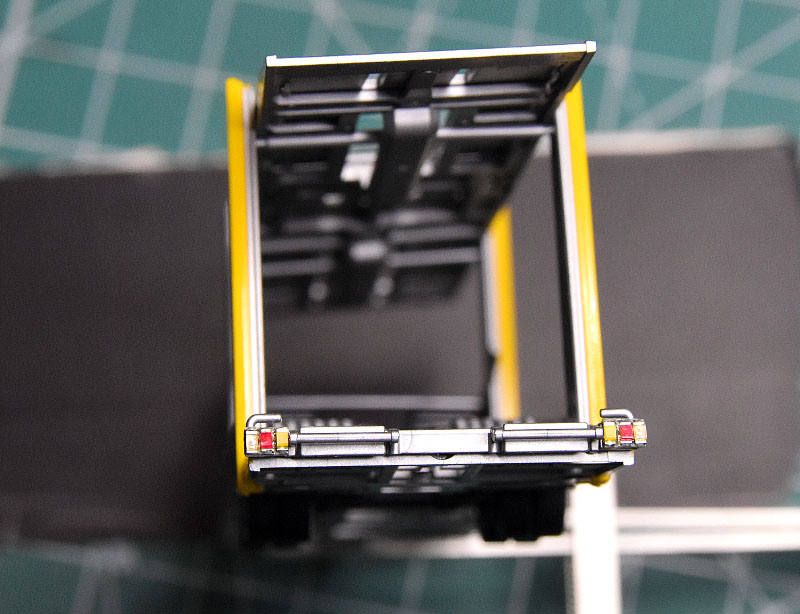

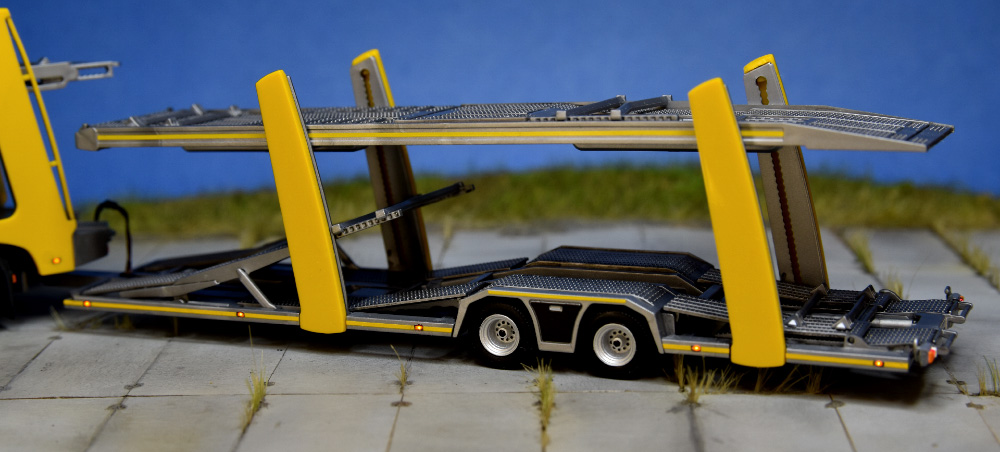

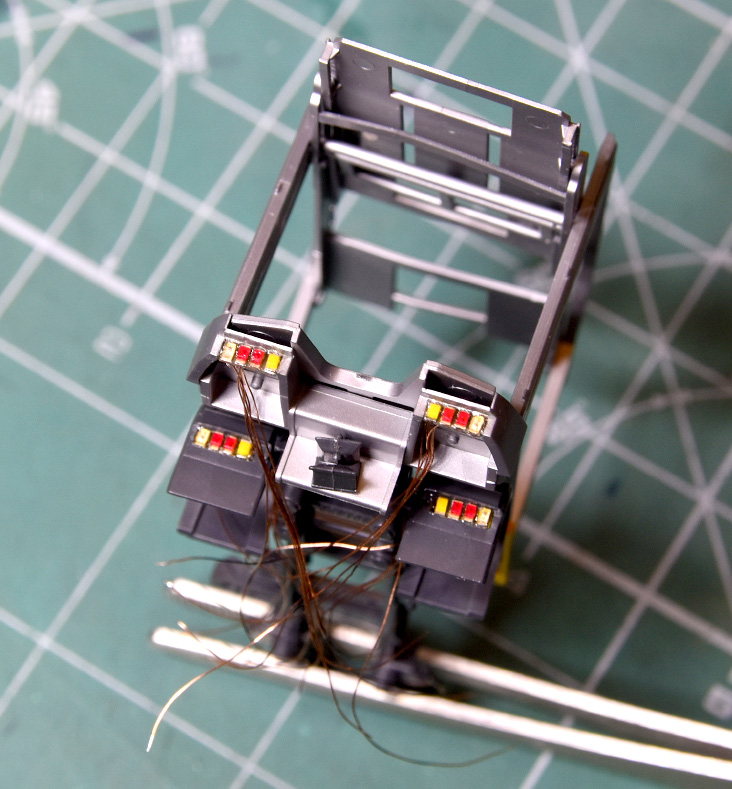

  • Trailer tail lights

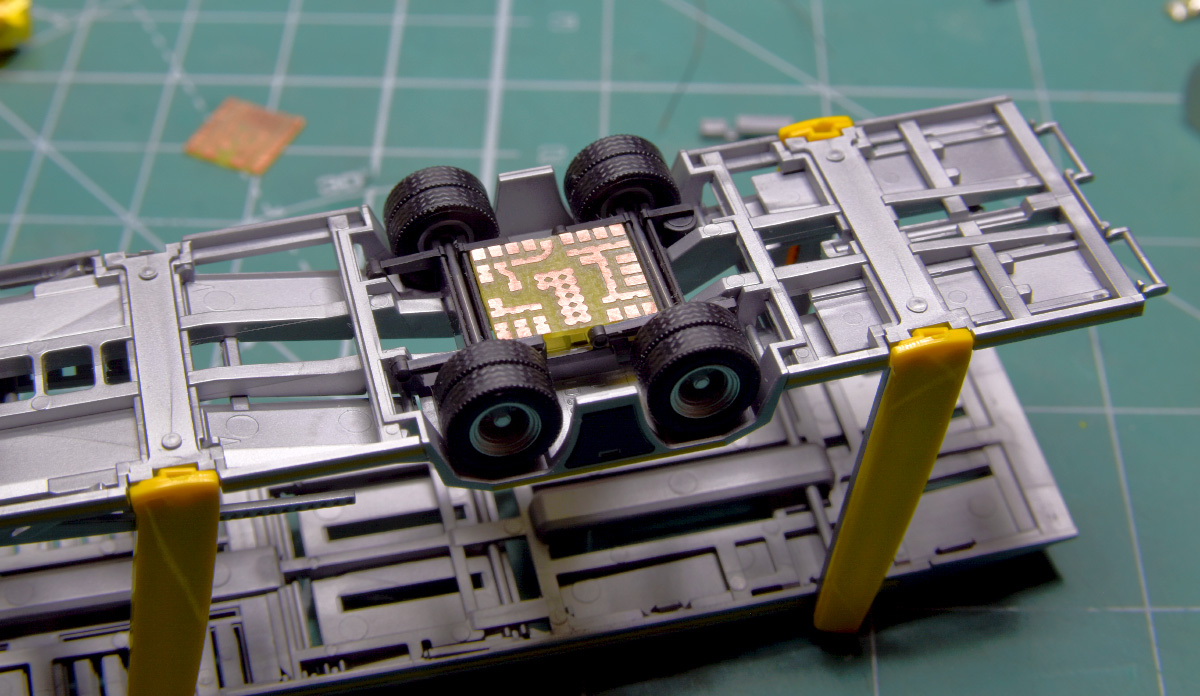

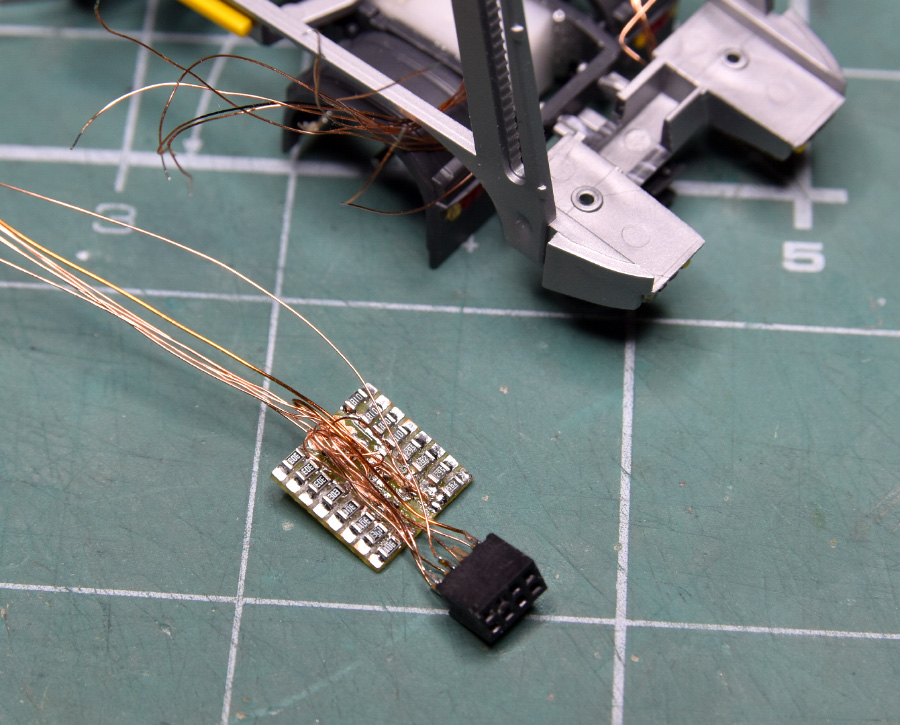

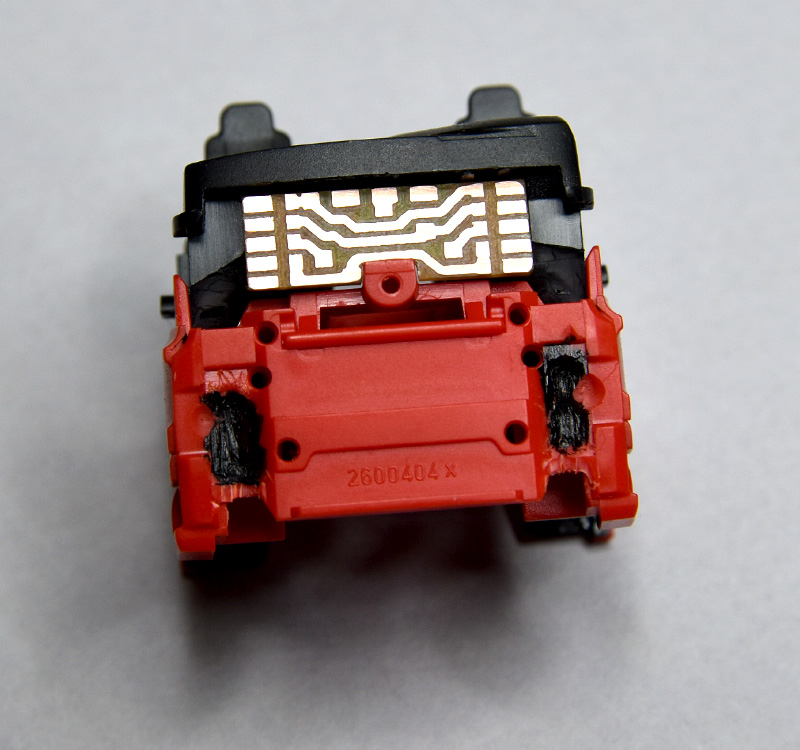

  • Fitted trailer PCB

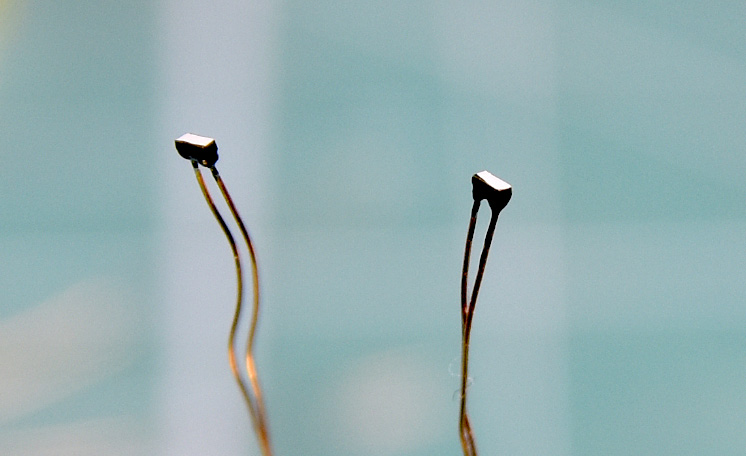

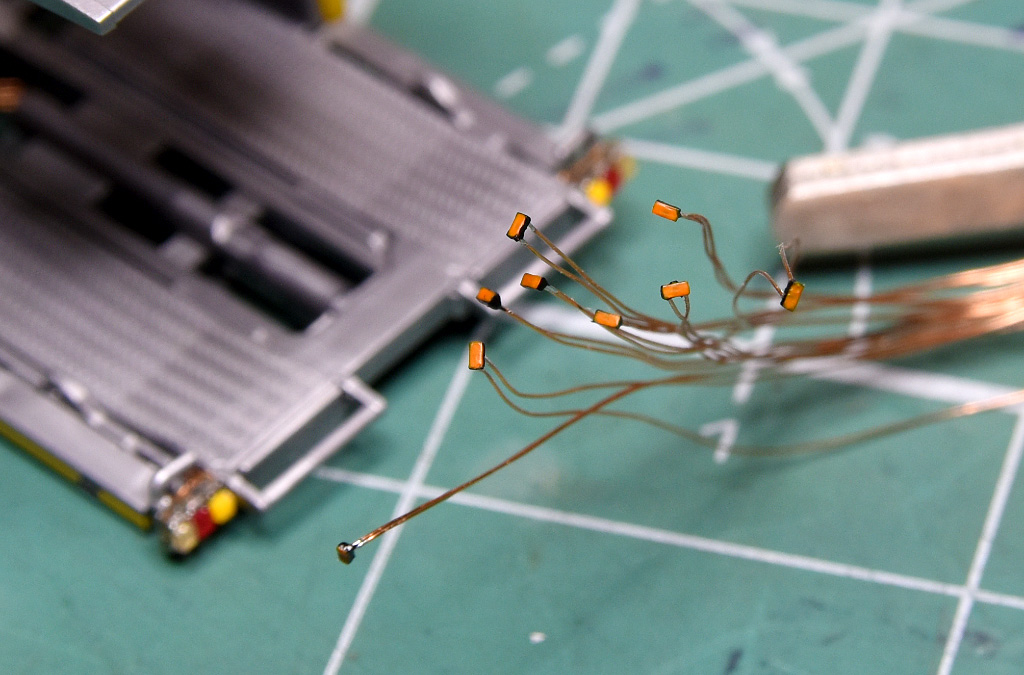

  • Prepared 0402 LEDs for side marker lights
  • Rear trailer’s red light are double functional, standard tail light and stop.

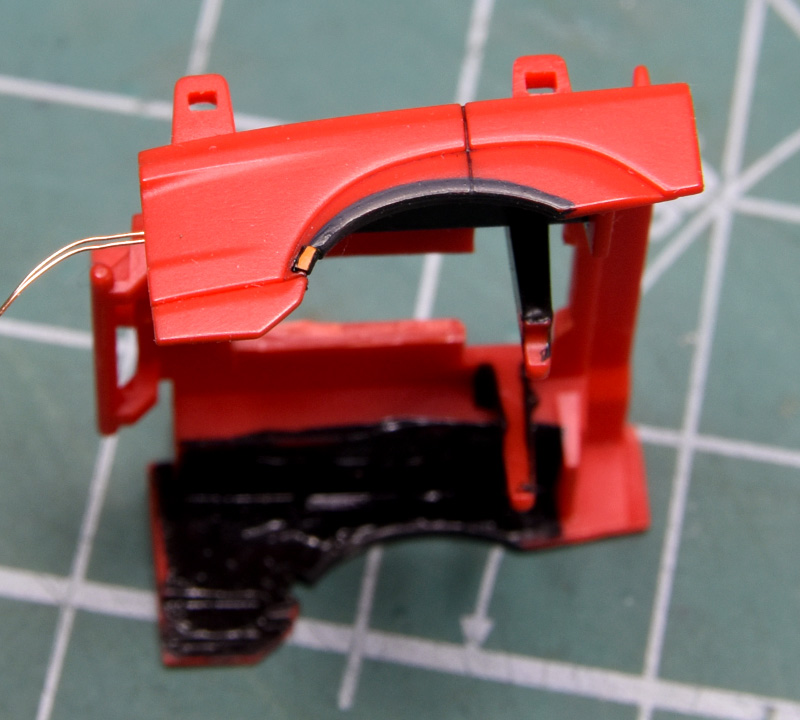

  • Side marker lights are ready

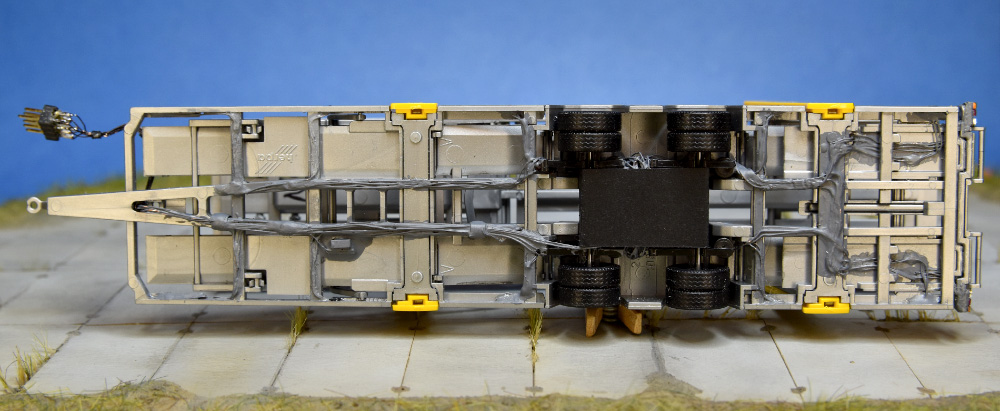

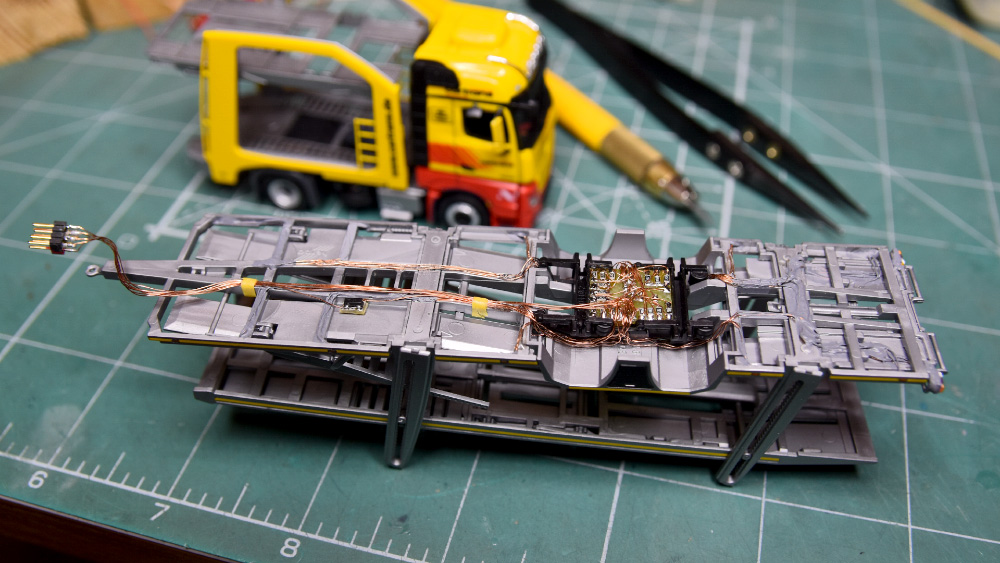

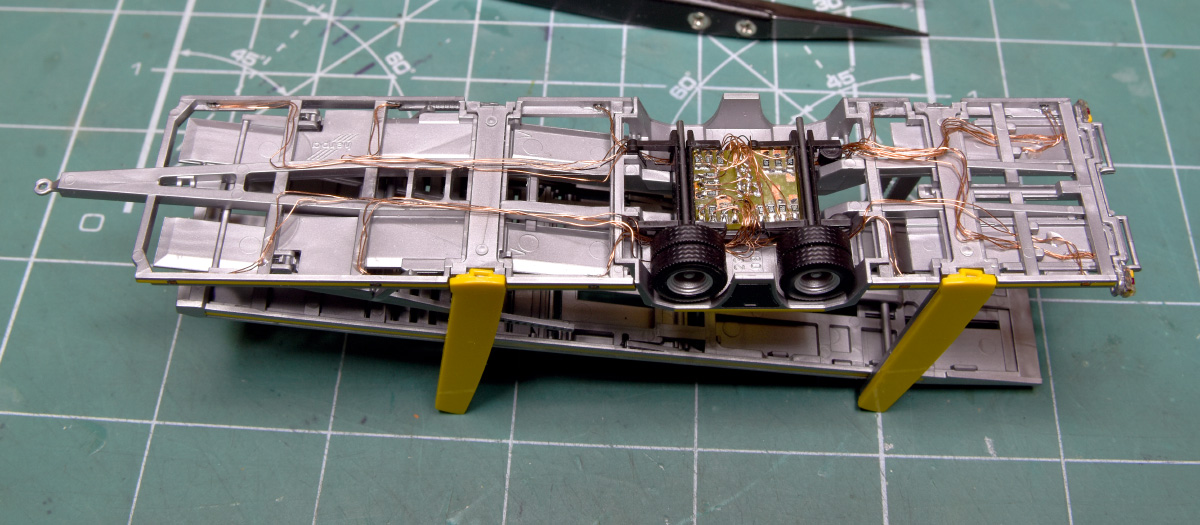

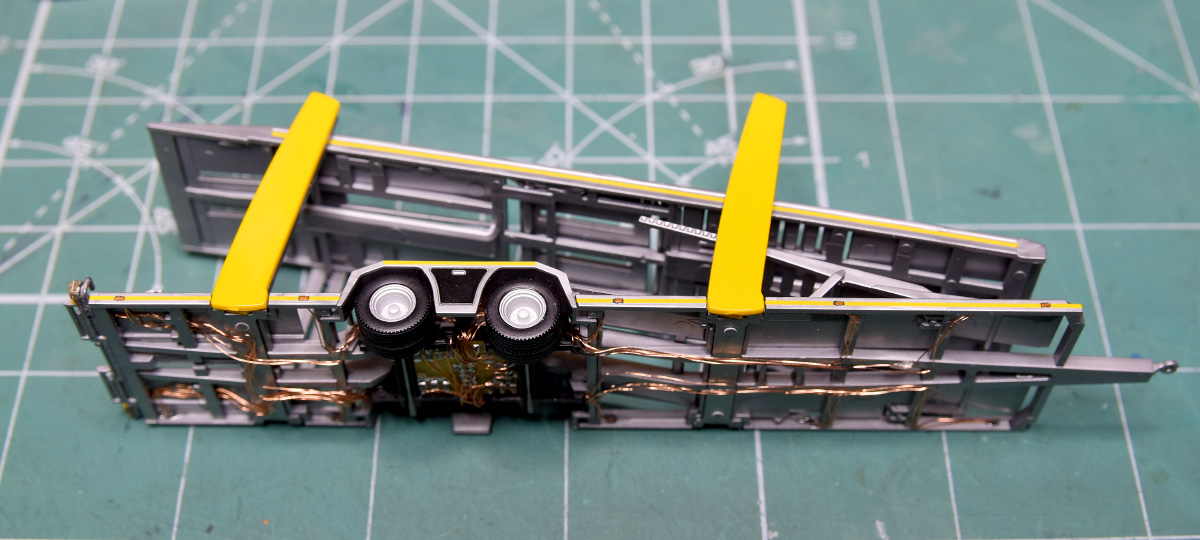

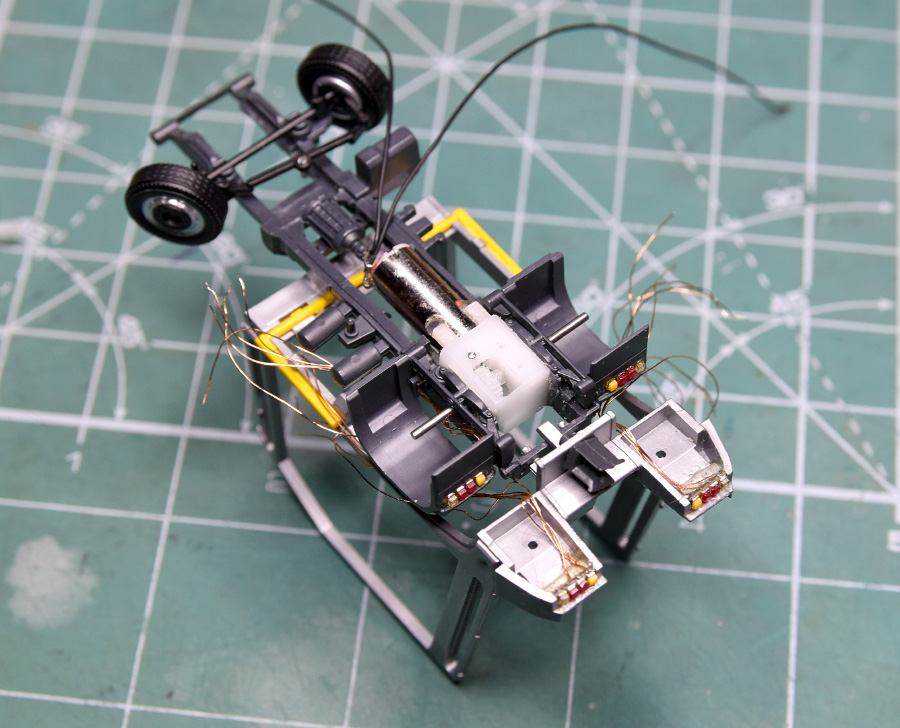

  • Wiring is ready
