Scania R420 “SAM Logistic”

Posted on December 14, 2020June 1, 2022
Sold
  • receiver Rx43d-1
  • geared motor G252M660P (kkpmo)
  • miro servo S18JST
  • lipo 1s 500mAh
  • micro SMD switch
  • micro socket for charging and for trailer connection
  • 45 LEDs – 0603 and few 0402

The building process was quite straightforward. Although the headlights were a bit of a challenge. Other elements, thanks to the large space on this truck, were easily assembled. The model was bought on aftermarket and was quite expensive for an older Herpa product. But I couldn’t resist buying and bringing this model to life.

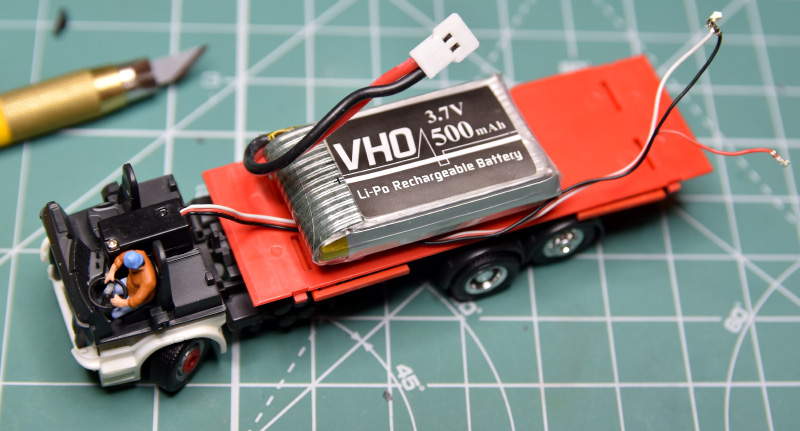

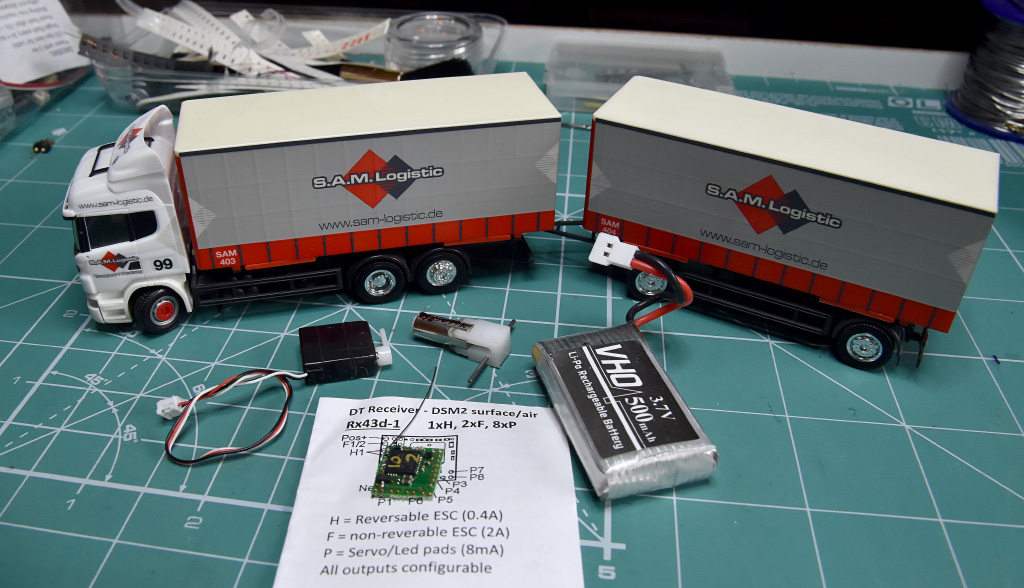

  • mikro-servo S18JST, Rx43d-1, big 1s LiPo

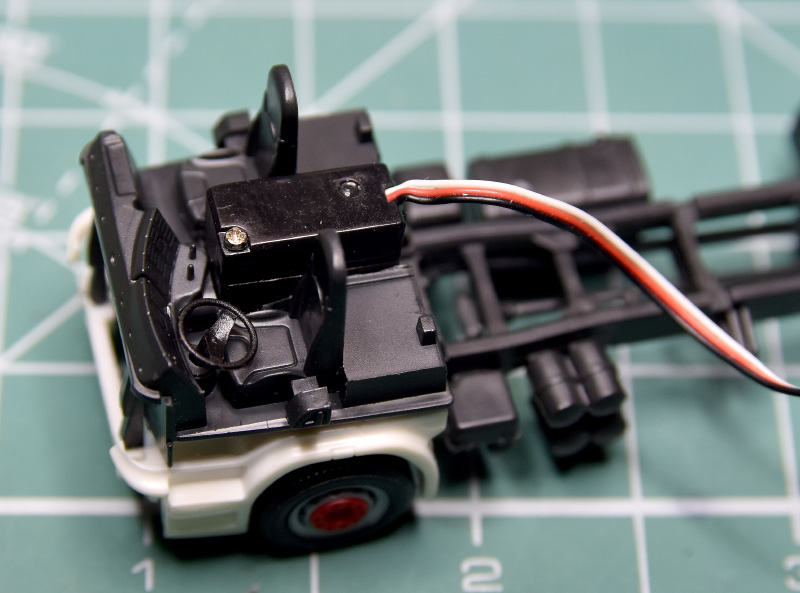

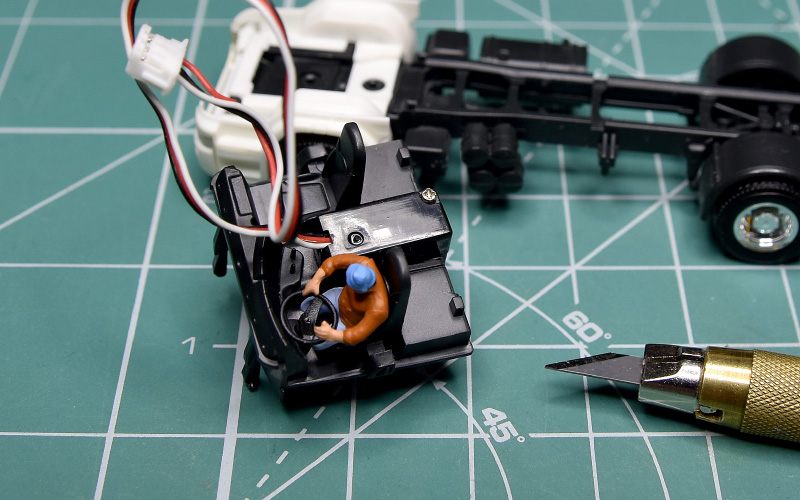

  • Servo in place
  • Servo in place

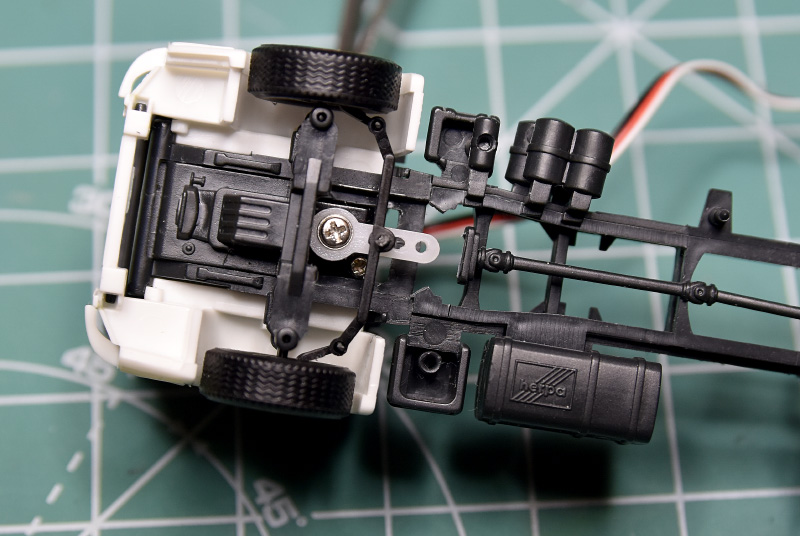

  • Servo connected to the suspension

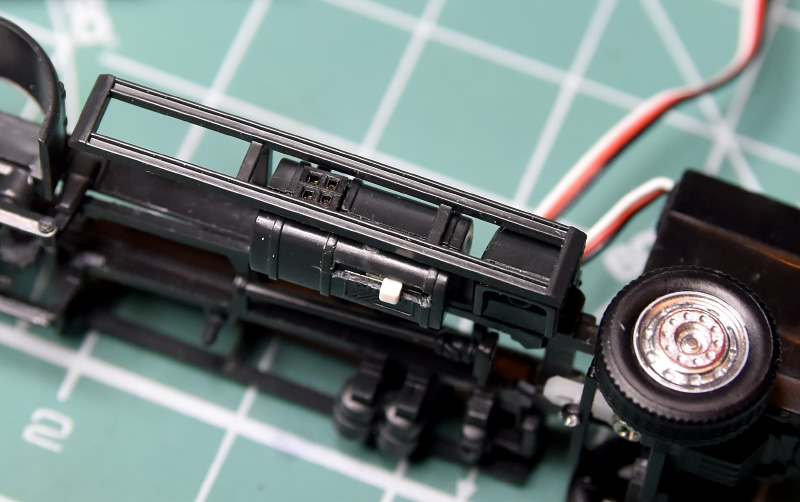

  • Work on the switch
  • Work on the switch
  • Work on the switch
  • Switch in place
  • Preparation of the headlamps

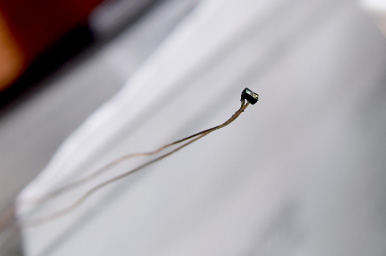

  • Front side marker lamp LED

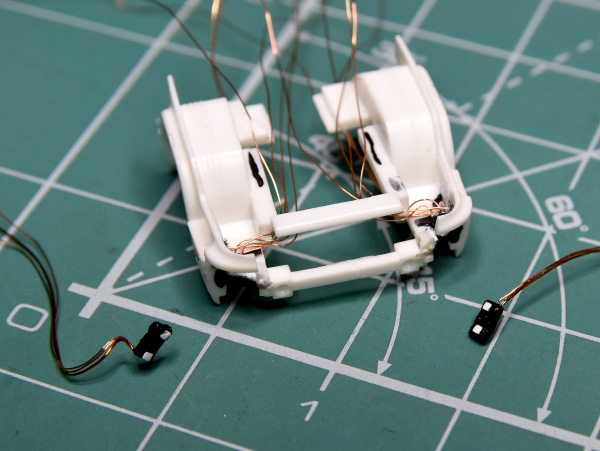

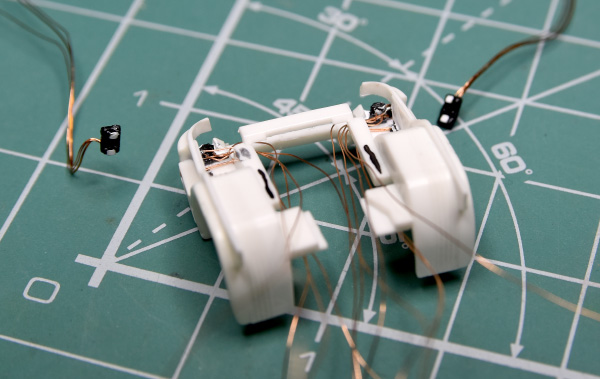

  • Work on headlamps
  • Work on headlamps
  • Top special and marker lamps

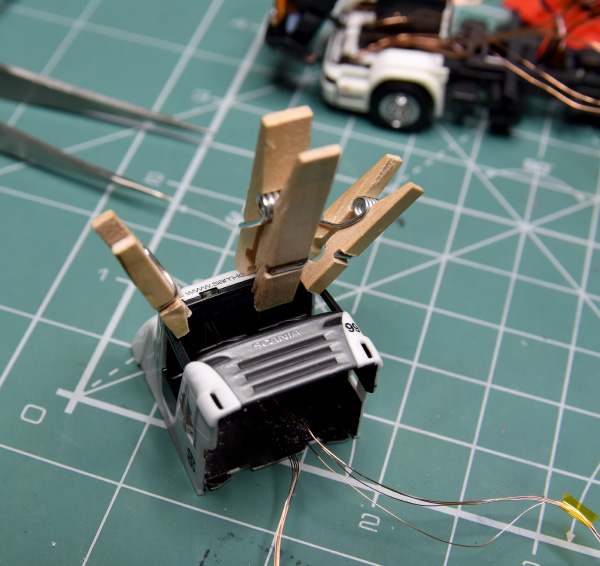

  • Top lamps glued to the cabin

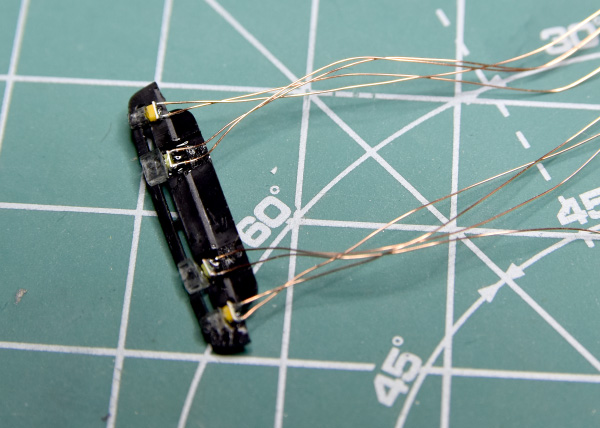

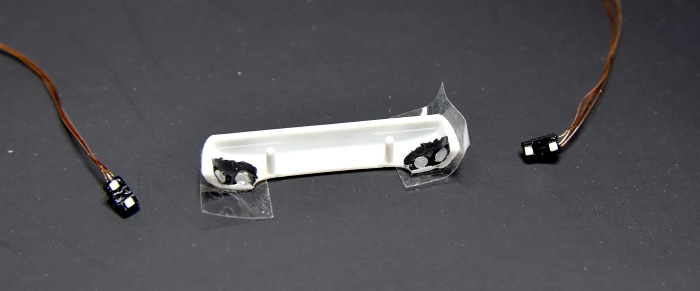

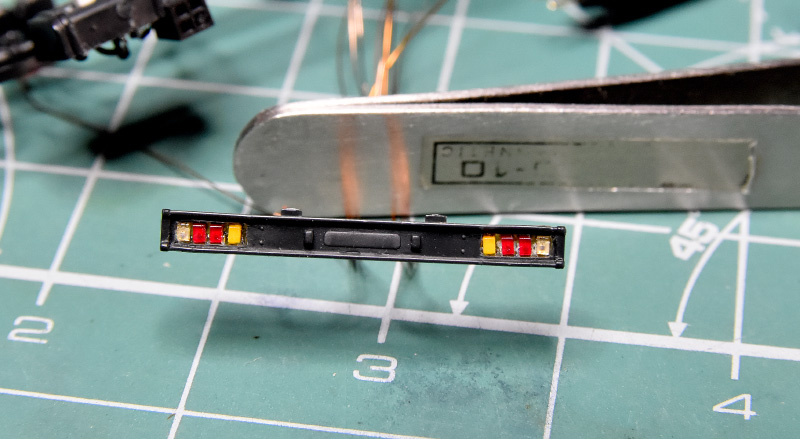

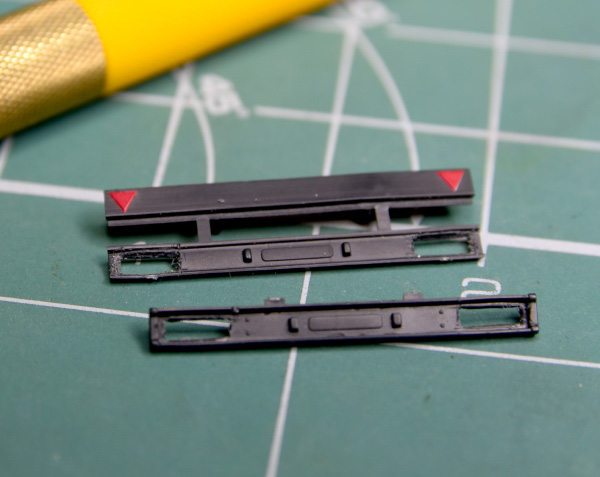

  • Preparation of the tail lights of the truck

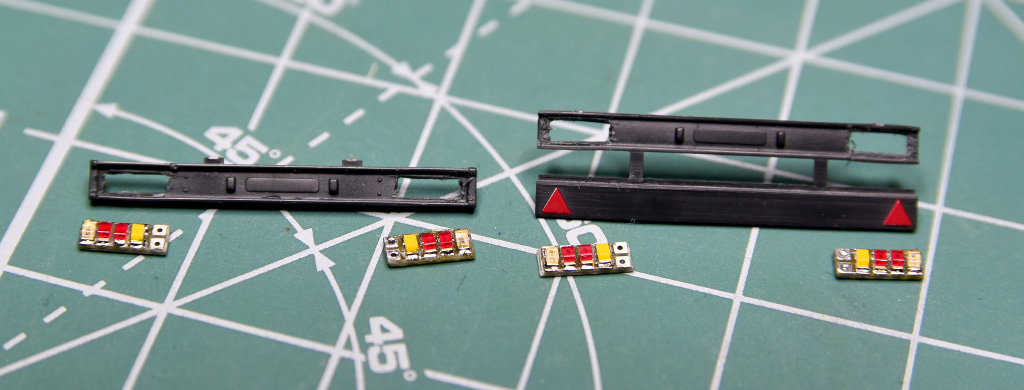

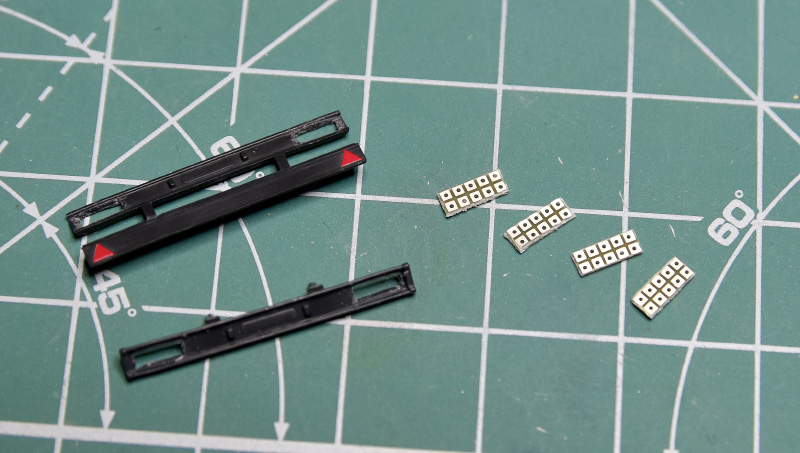

  • Preparation of the tail lights of the truck and trailer
  • Preparation of the tail lights of the truck and trailer
  • Preparation of the tail lights of the truck and trailer
  • Tail lights glued into place

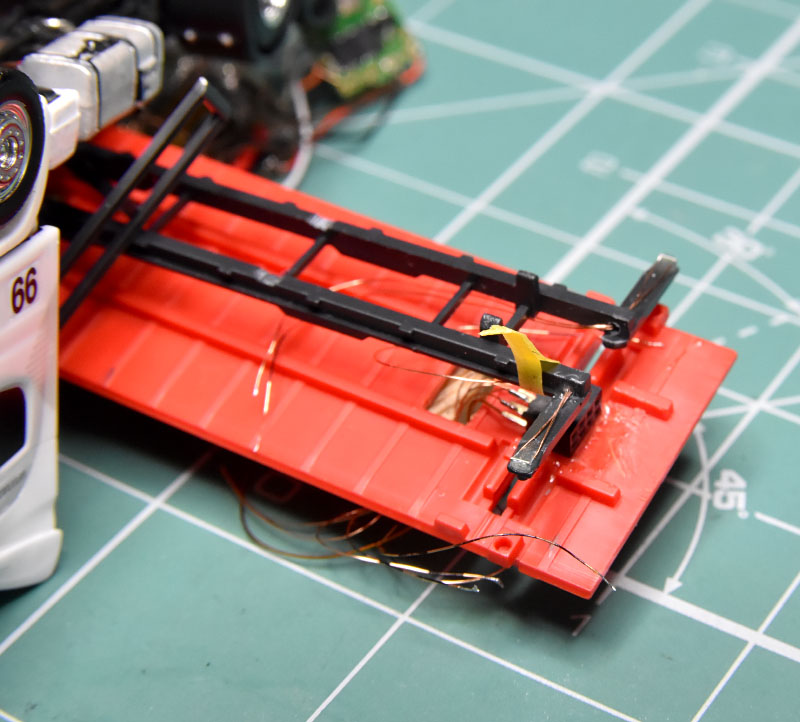

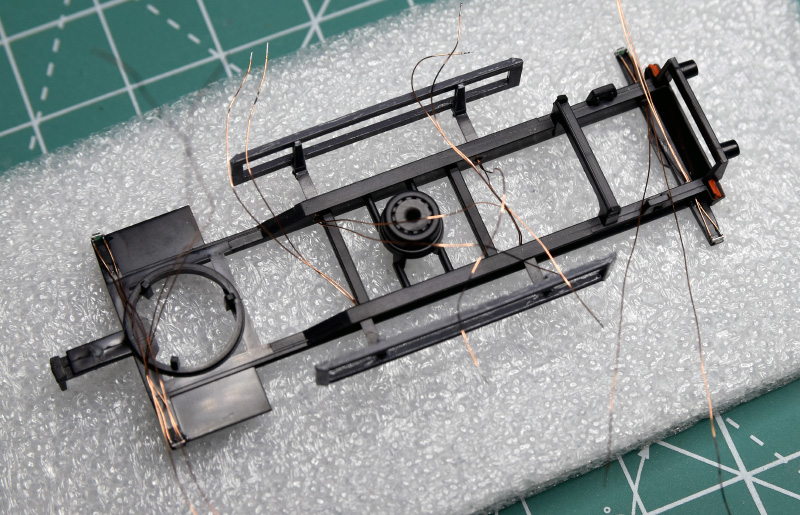

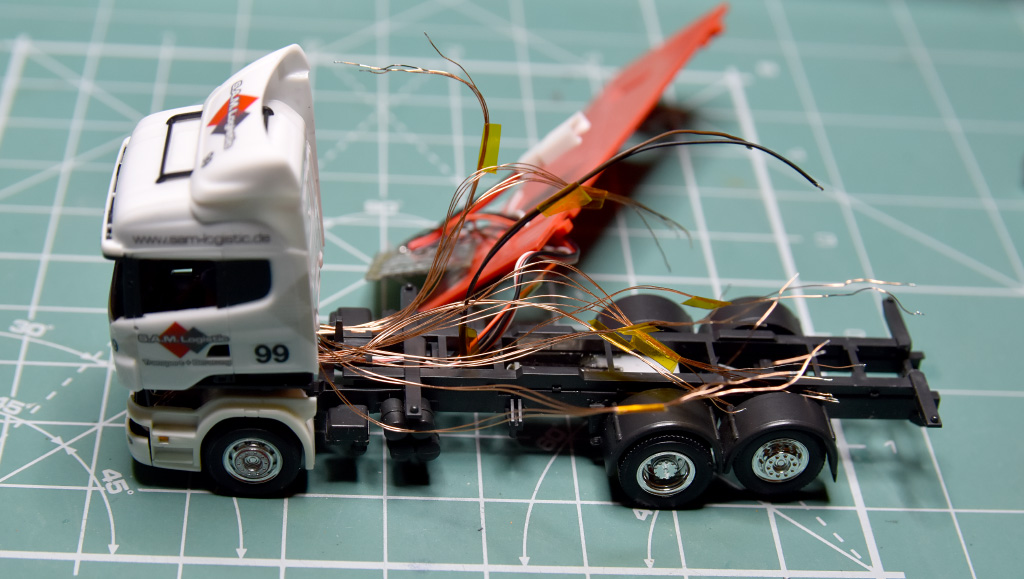

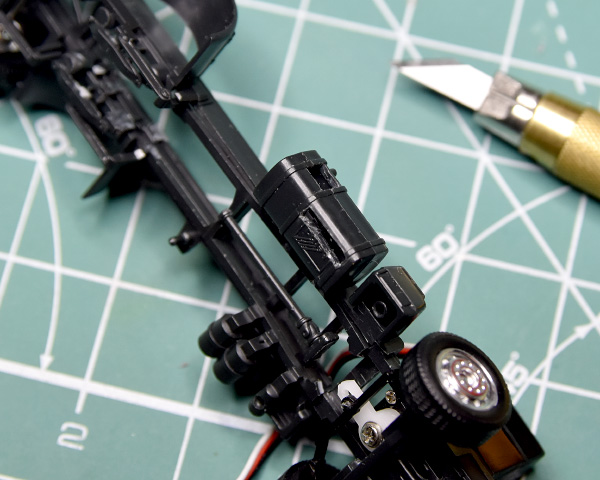

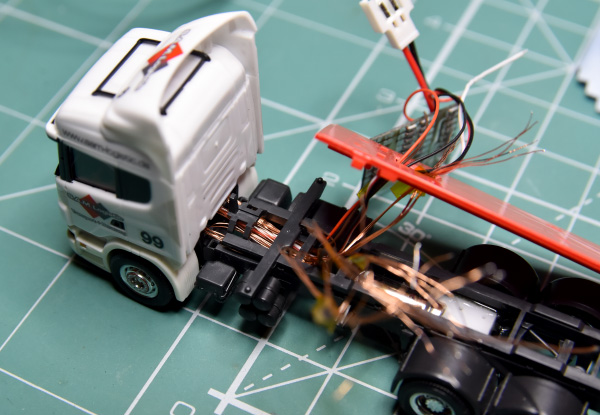

  • Work on the rear part of the truck
  • Work on the rear part of the truck
  • Work on the rear part of the truck
  • Work on the rear part of the truck
  • Work on the rear part of the truck

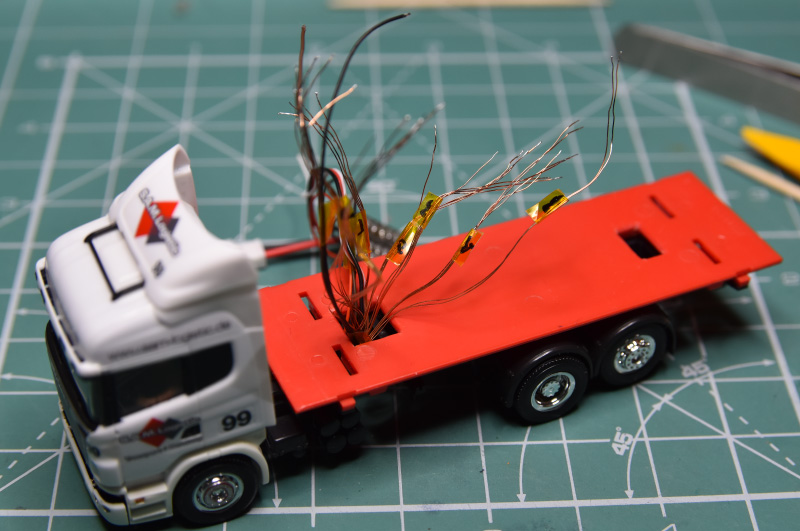

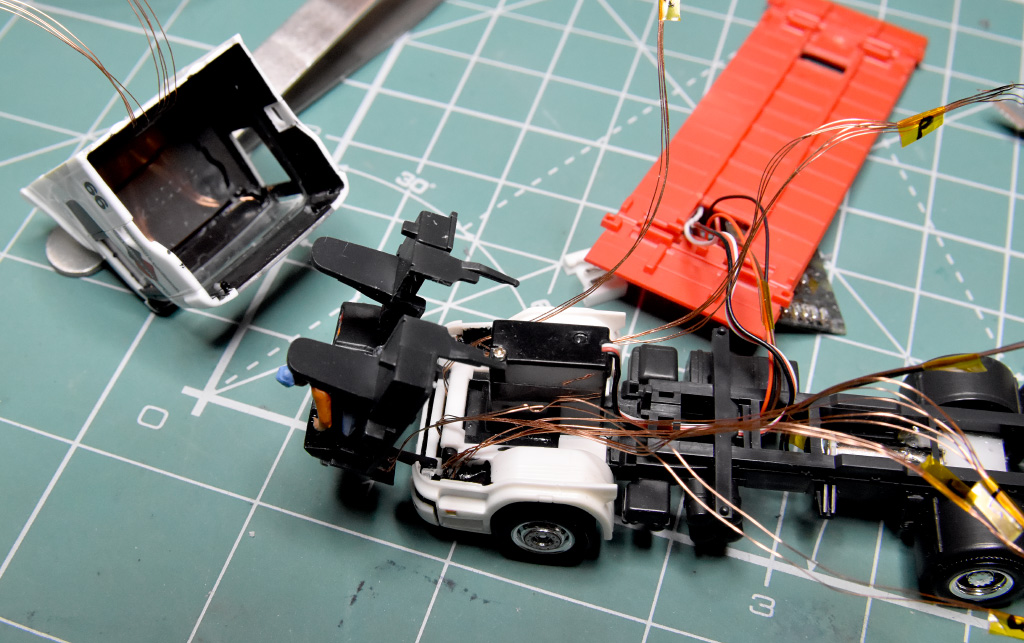

  • Wires prepared for connection to PCB

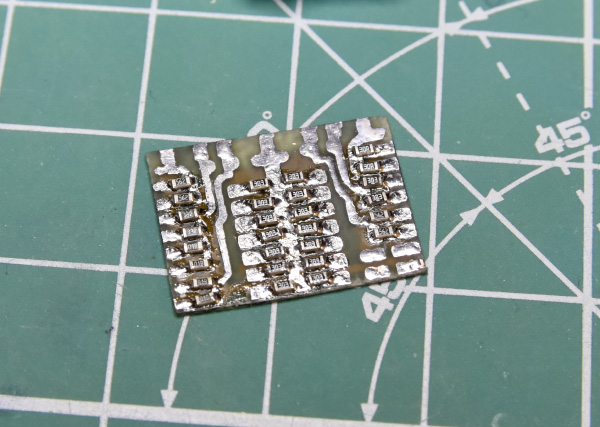

  • PCB with all LEDs’ resistors

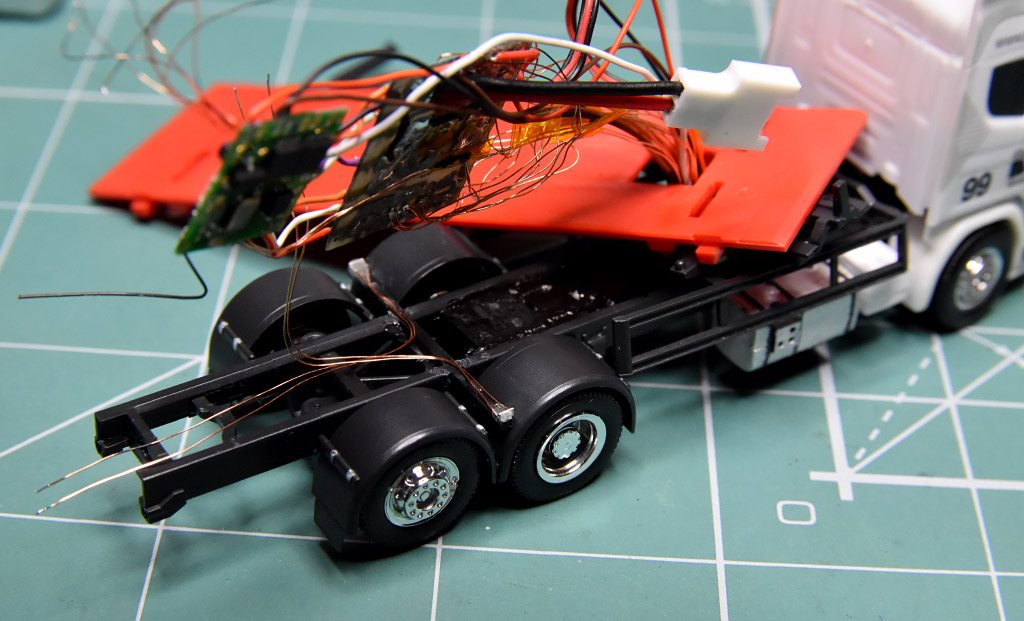

  • Receiver connected

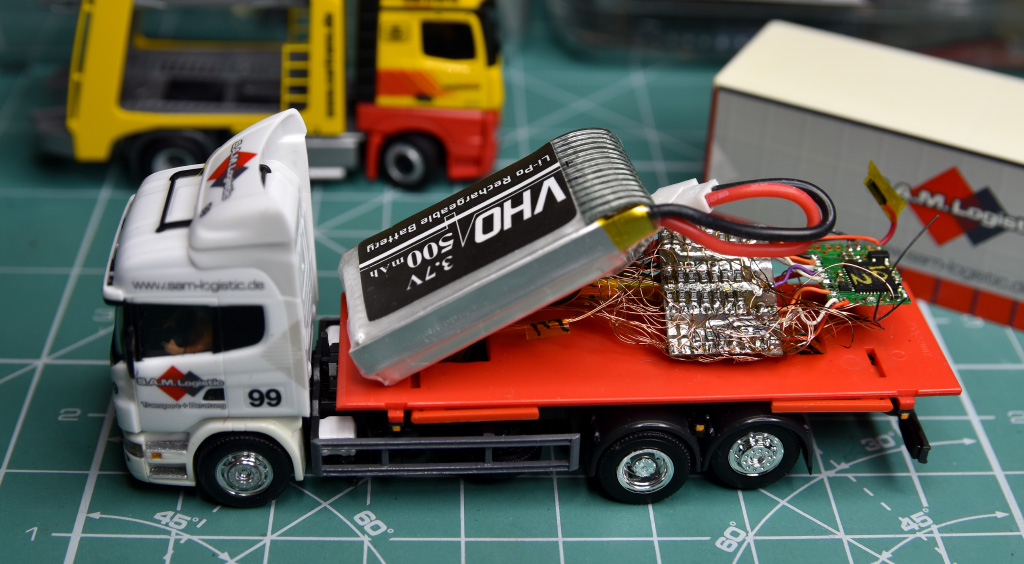

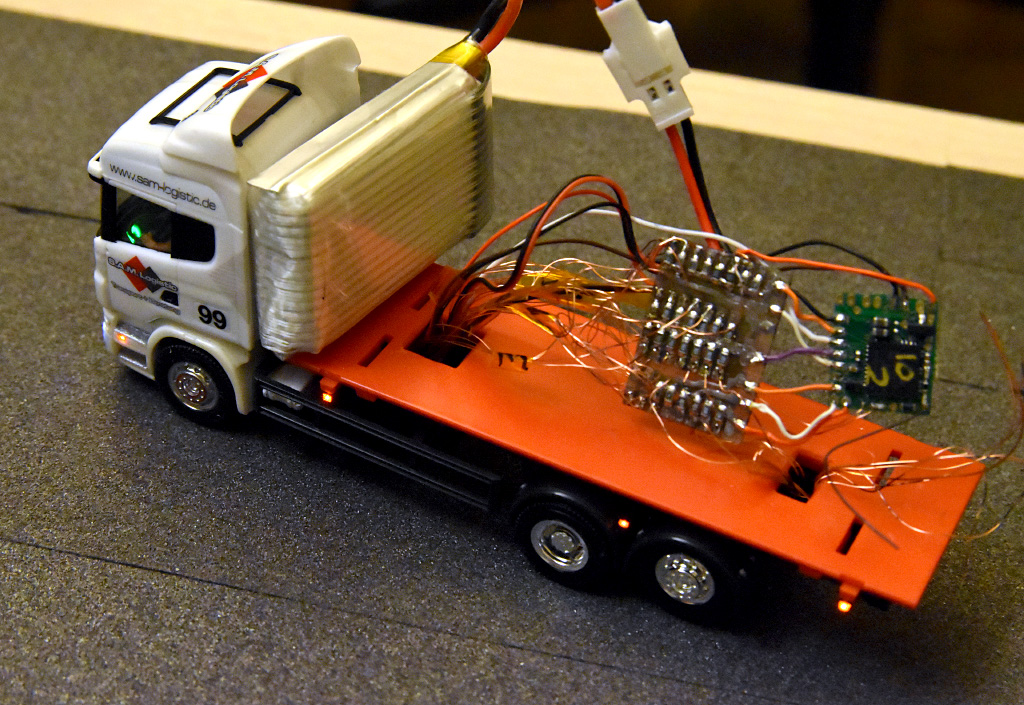

  • Final location of the cell on the truck

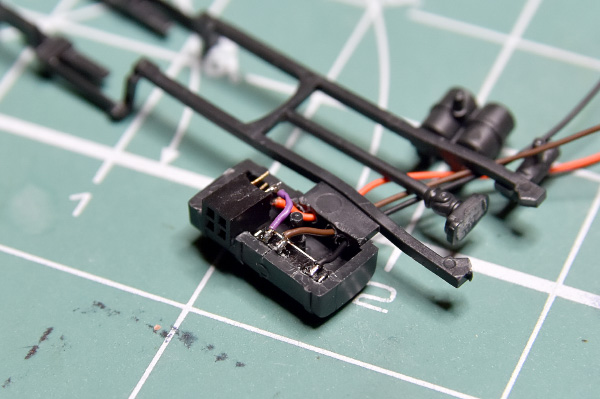

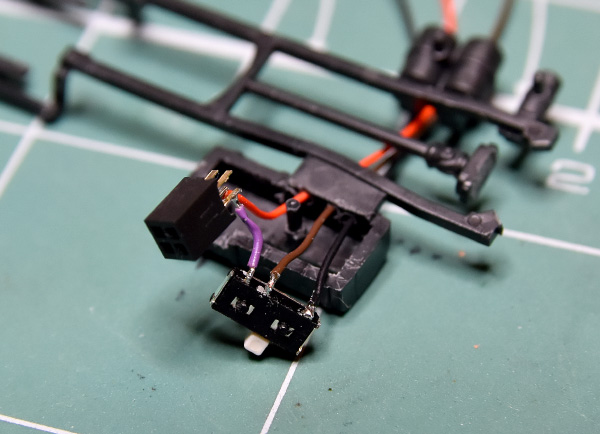

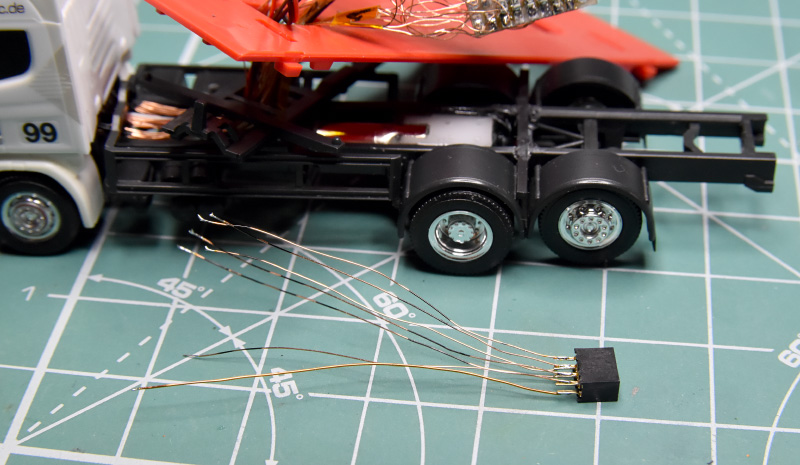

  • Work on the rear socket for the trailer
  • Work on the rear socket for the trailer
  • Work on the rear socket for the trailer

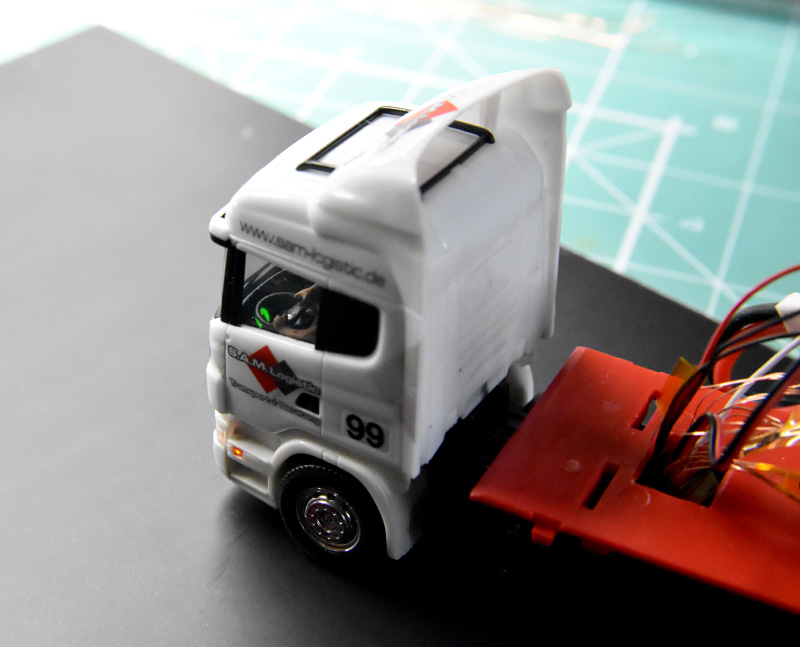

  • The receiver status LED is mounted on the dashboard

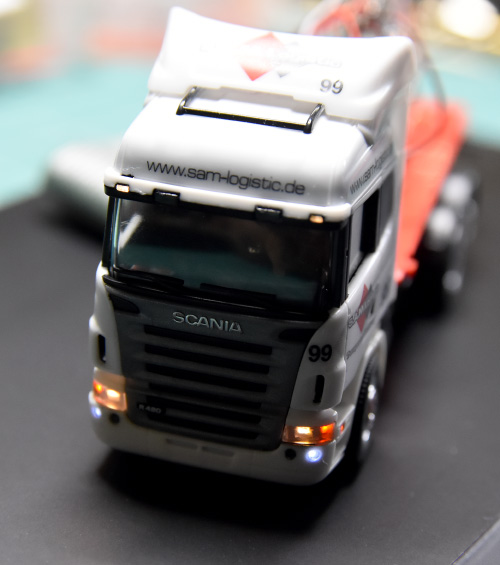

  • Front and marker lights

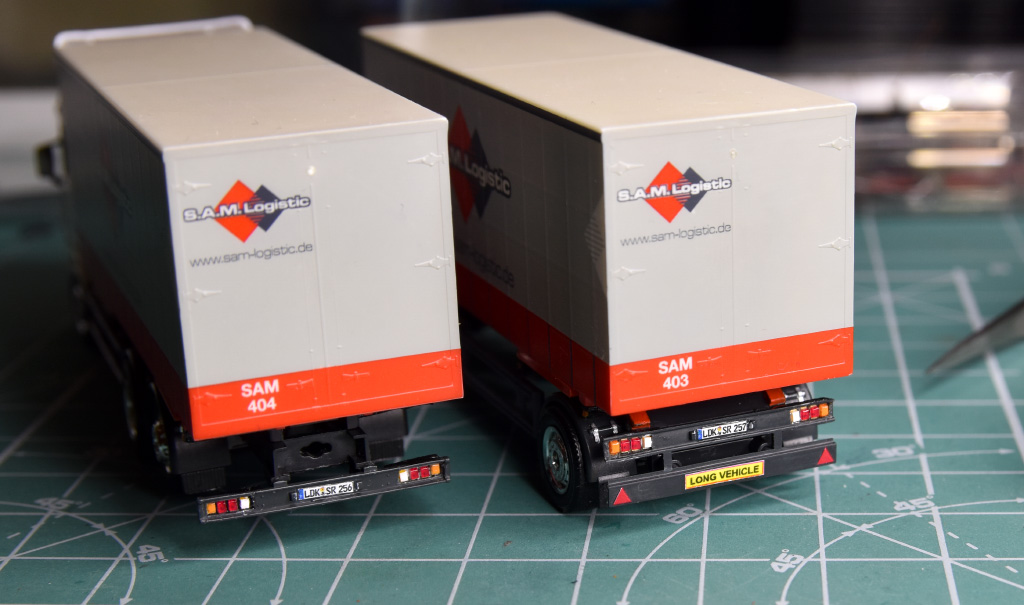

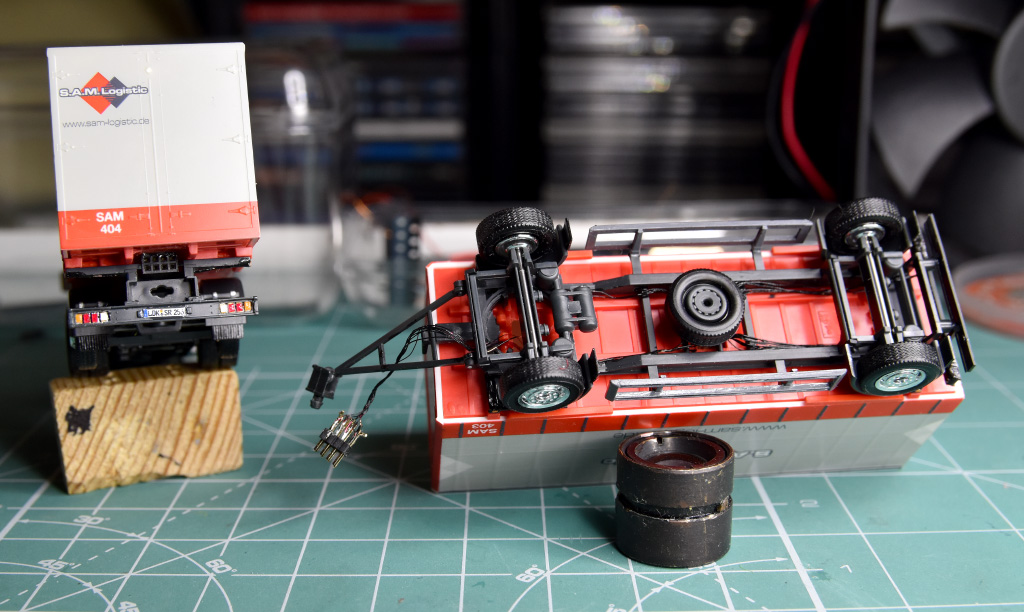

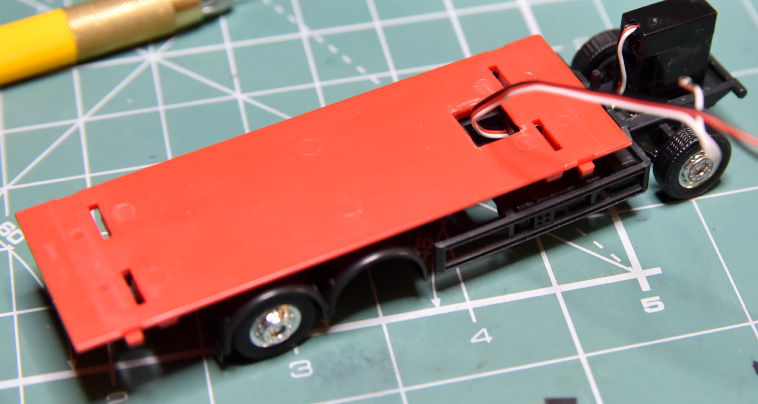

  • Work on the trailer
  • Trailer wires connected to the trailer PCB
  • The trailer is ready

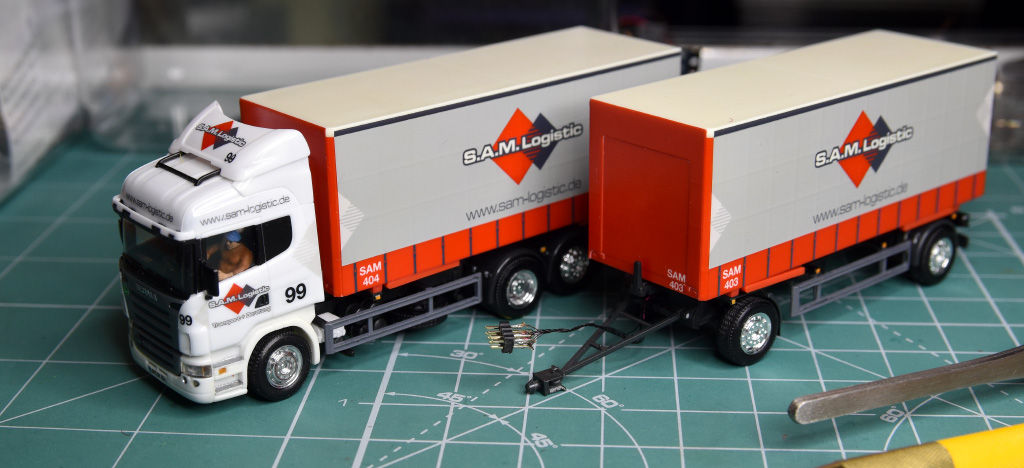

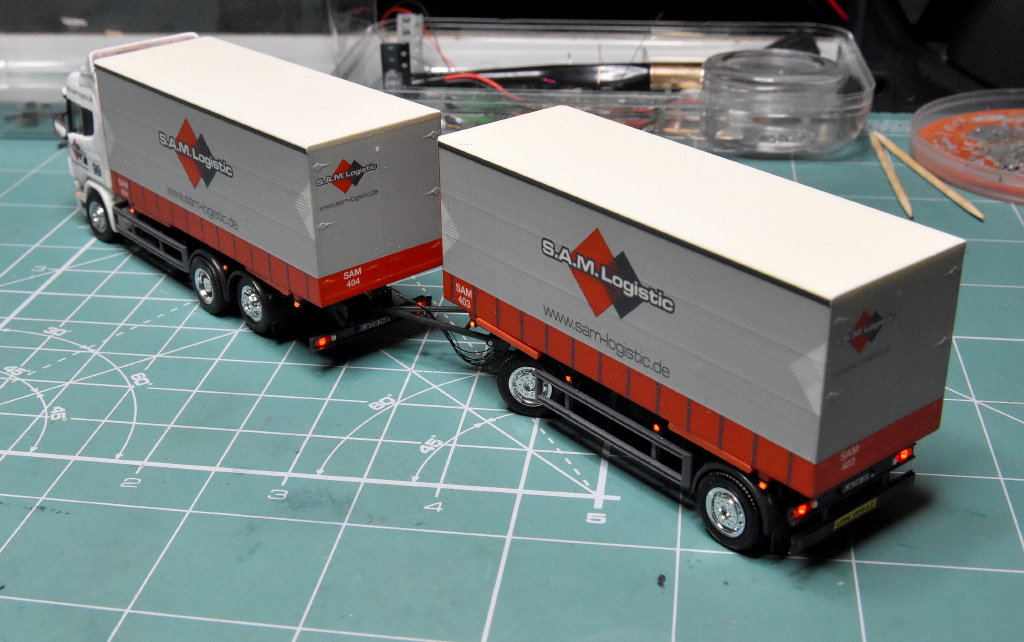

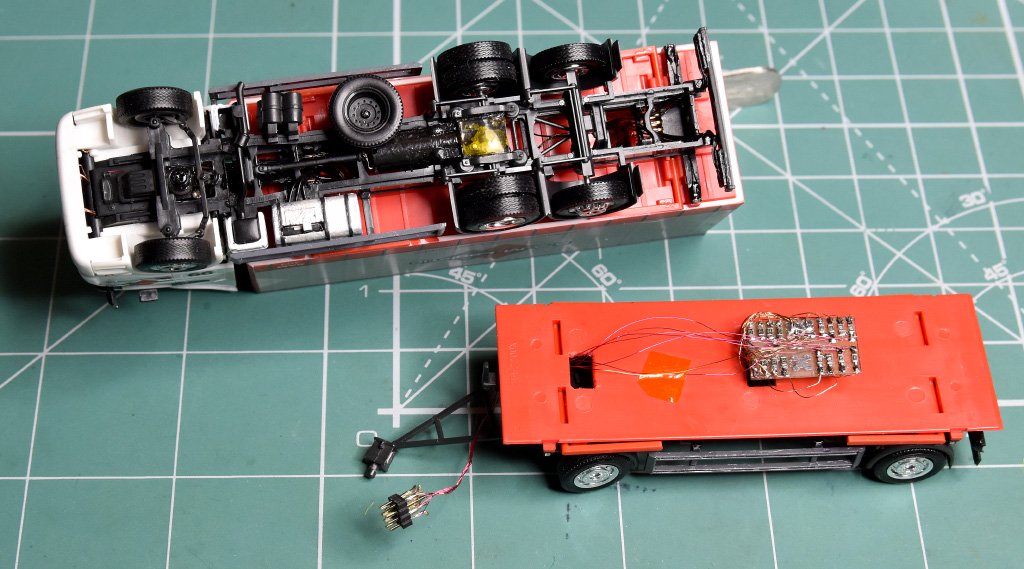

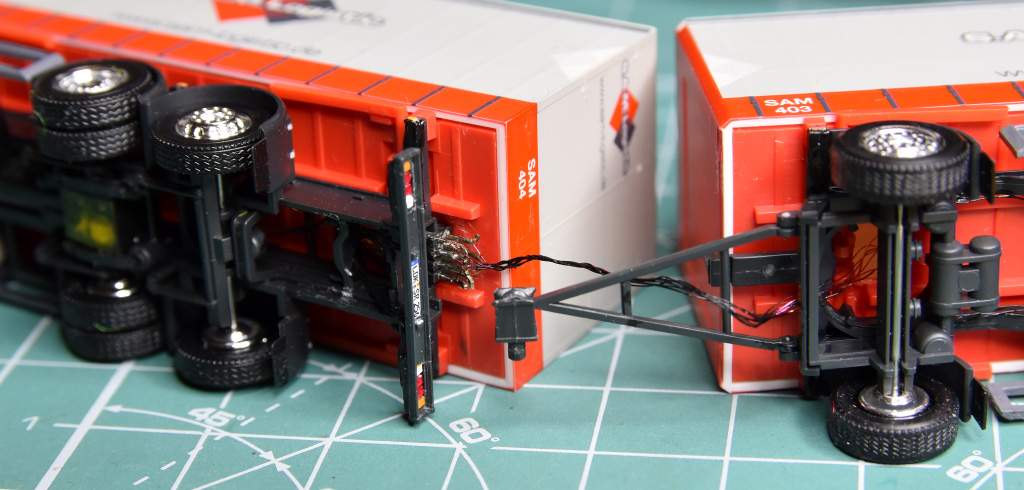

  • Truck and trailer connection

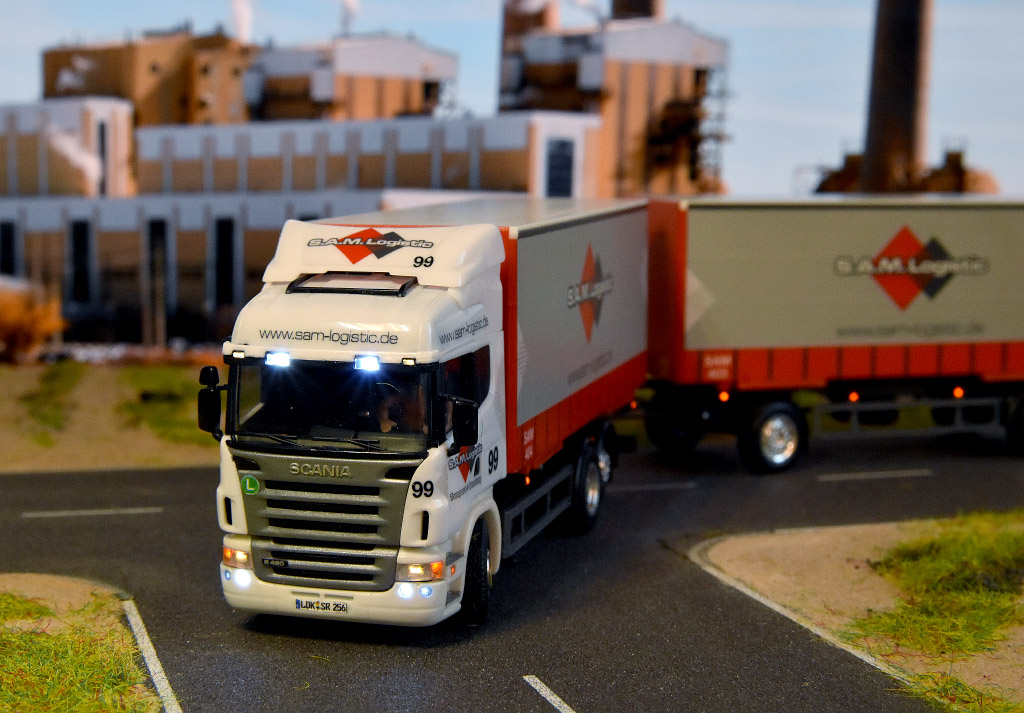

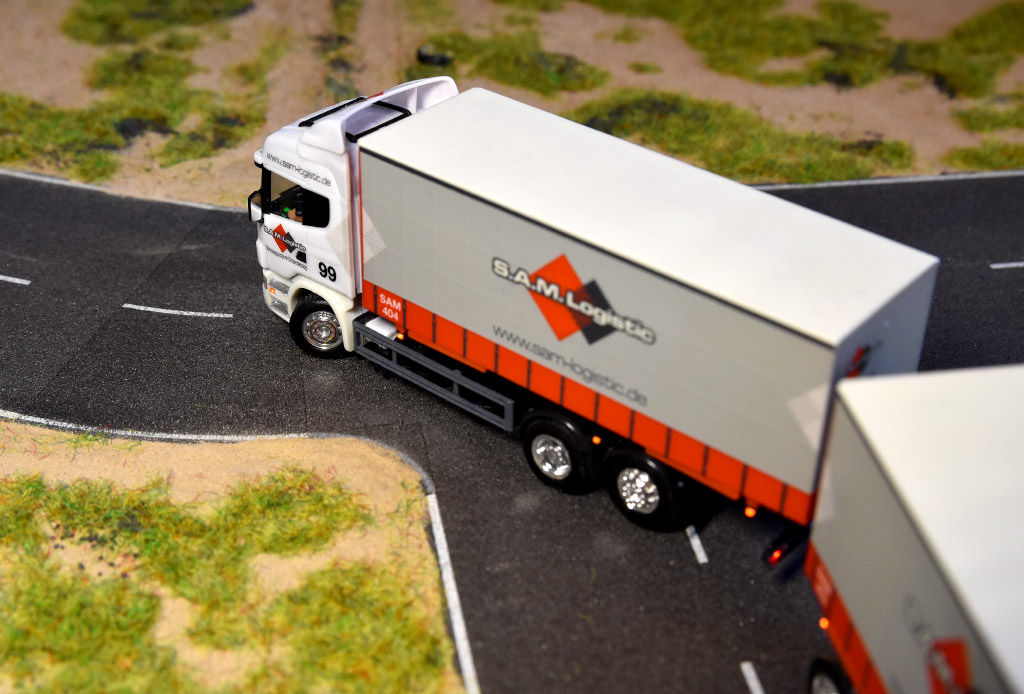

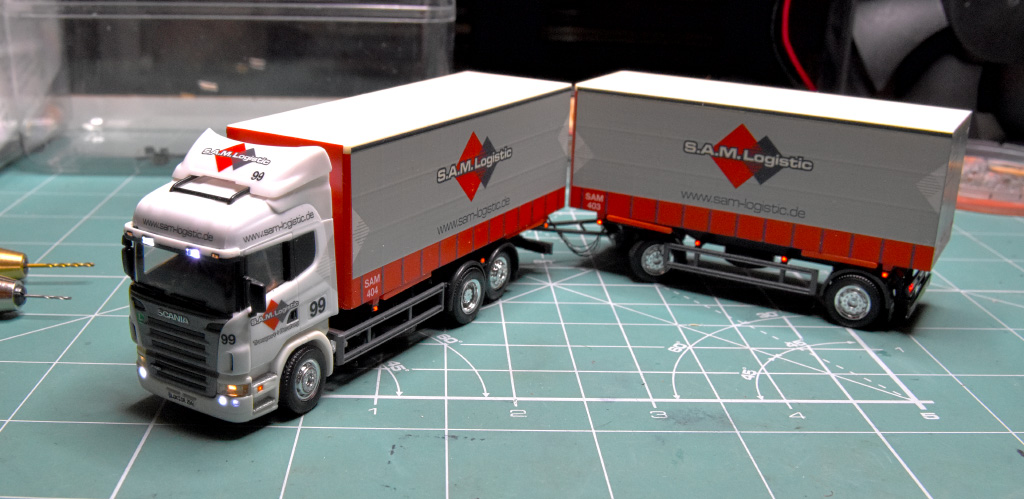

  • The model is ready
  • The model is ready
  • The model is ready
  • The model is ready
  • The model is ready
  • Scania R420 “S.A.M. Logistic”
